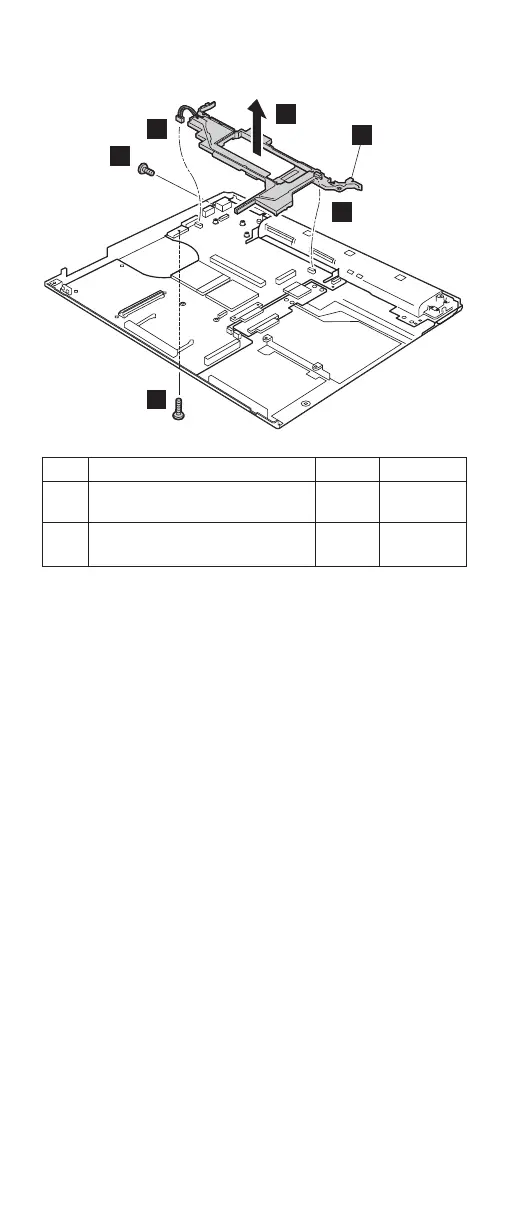

Step Screw (quantity) Color Torque
4 M2 × 10 mm, flat-head,
nylon-coated (1)
Black 0.245 Nm
(2.5
kgfcm)
5 M2.5 × 4.8 mm, bind-head,
nylon-coated (1)
Black 0.392 Nm
(4
kgfcm)
Remove two connectors 6 and then remove the cable
guide c in the direction of arrow 7.
When installing: Make sure that the connectors 6 are
firmly attached to the system board.
(continued)
Removing and replacing a FRU
144 MT 1871/1872/1875/1876
