Use Figure 3 with Table 3 for a list of parts and their locations.
Table 3. SAS subsystem parts in a system with the expanded function storage configuration
Diagram
location Part name Feature code (FC)
Customer card
identification numbers
(CCINs) Physical location codes
A PCIe3 x8 cache SAS RAID
internal adapter 6 Gb (quantity 2)
EJ0P for 8247-42L, 8286-41A, or
8286-42A systems
EJ0U for 8284-21A and
8284-22A systems
EL3U for 8247-21L and
8247-22L systems
57D8 P1-C14, P1-C15
B, C Expanded function disk drive
backplane which supports one of
the following options:
v 18 SFF bays (C) and 8 SSD
bays (E) in the 8247-42L,
8286-41A, or 8286-42A systems
v 8 SFF bays (C) and 6 SSD bays
(E) in the 5148-22L, 8247-21L,
8247-22L, 8284-21A, or
8284-22A systems
EL3W for 5148-22L server
EJ0P for the 8247-42L,
8286-41A, or 8286-42A systems
EJ0U for 8284-21A and
8284-22A system
EL3U for the 8247-21L and
8247-22L systems
2B0F for the 8247-42L,
8286-41A, or 8286-42A
systems
2B5A for the 5148-22L,
8247-21L, 8247-22L,
8284-21A, or 8284-22A
systems
P2 for expanded function disk drive
backplane
P2-D1 through P2-D8 for diskbays in
5148-22L, 8247-21L, 8247-22L, 8284-21A,
or 8284-22A systems
P2-D1 through P2-D9 and P2-D18
through P2-D26 for SSDs in 8247-42L,
8286-41A, or 8286-42A systems
P2-D9 through P2-D14 for expanded
function disk drive backplane
E SSD bays P2-D9 through P2-D14 in 5148-22L,
8247-21L, 8247-22L, 8284-21A, or
8284-22A systems
P2-D10 through P2-D17 in 8247-42L,
8286-41A, or 8286-42A systems
D One Slimline DVD bay 5771 P2-D27 for 8247-42L, 8286-41A, or
8286-42A systems
P2-D15 for 5148-22L, 8247-21L, 8247-22L,
8284-21A, or 8284-22A systems
F External SAS port cable assembly
G Backup power module cards (one
for each SAS RAID internal
adapter)
P1-C14-C1 and P1-C15-C2
G
A
E
F
B
C
D
P8EG2501-0

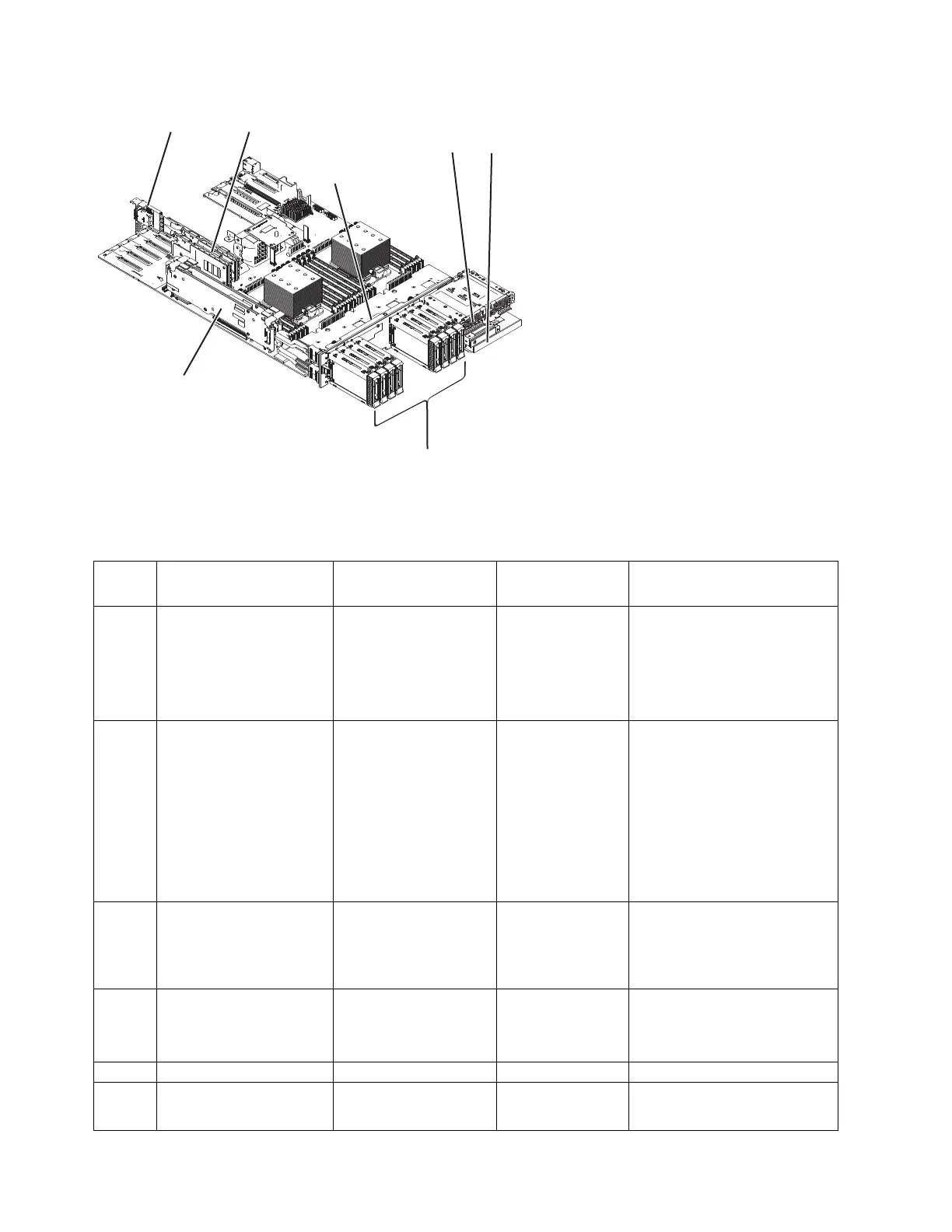

Figure 3. SAS subsystem parts in a system with the expanded function storage configuration
4 SAS subsystem
