Feature locations for the SAS subsystem parts in the base function storage configuration with the split
disk configuration
Figure 2 provides information about the supported SAS features and their system locations in systems
that have the base function storage configuration with the split disk configuration.
Use Table 2 with Figure 2 for a list of parts and their locations.
Table 2. SAS subsystem parts in a base function storage configuration system with the split disk configuration
Diagram
location Part name Feature code (FC)
Customer card
identification numbers
(CCINs) Physical location codes
A PCIe3 x8 SAS RAID internal
adapter 6 Gb (quantity 2)
EJ0S for 8247-42L, 8286-41A, or
8286-42A systems
EJ0V for 8284-21A and
8284-22A systems
EL3V for 8247-21L and
8247-22L systems
57D7 P1-C14, P1-C15
B, C1, C2 Base function disk drive
backplane with 12 SFF bays split
into two groups of 6 disk bays
(C1, C2)
EJ0N for 8247-42L, 8286-41A,
or 8286-42A systems
EJ0T for 8284-21A and
8284-22A systems
EL3T for 8247-21L and
8247-22L systems
2B09 P2 for base function disk drive
backplane
P2-D1 through P2-D12 for diskbays
D One Slimline DVD bay 5771 P2-D27 for systems that are 4U high
P2-D15 for systems that are 2U high
Feature locations for the SAS subsystem parts in the expanded function storage configuration
Figure 3 on page 4 provides information about the supported SAS features and their system locations in
systems that have the expanded function storage configuration.

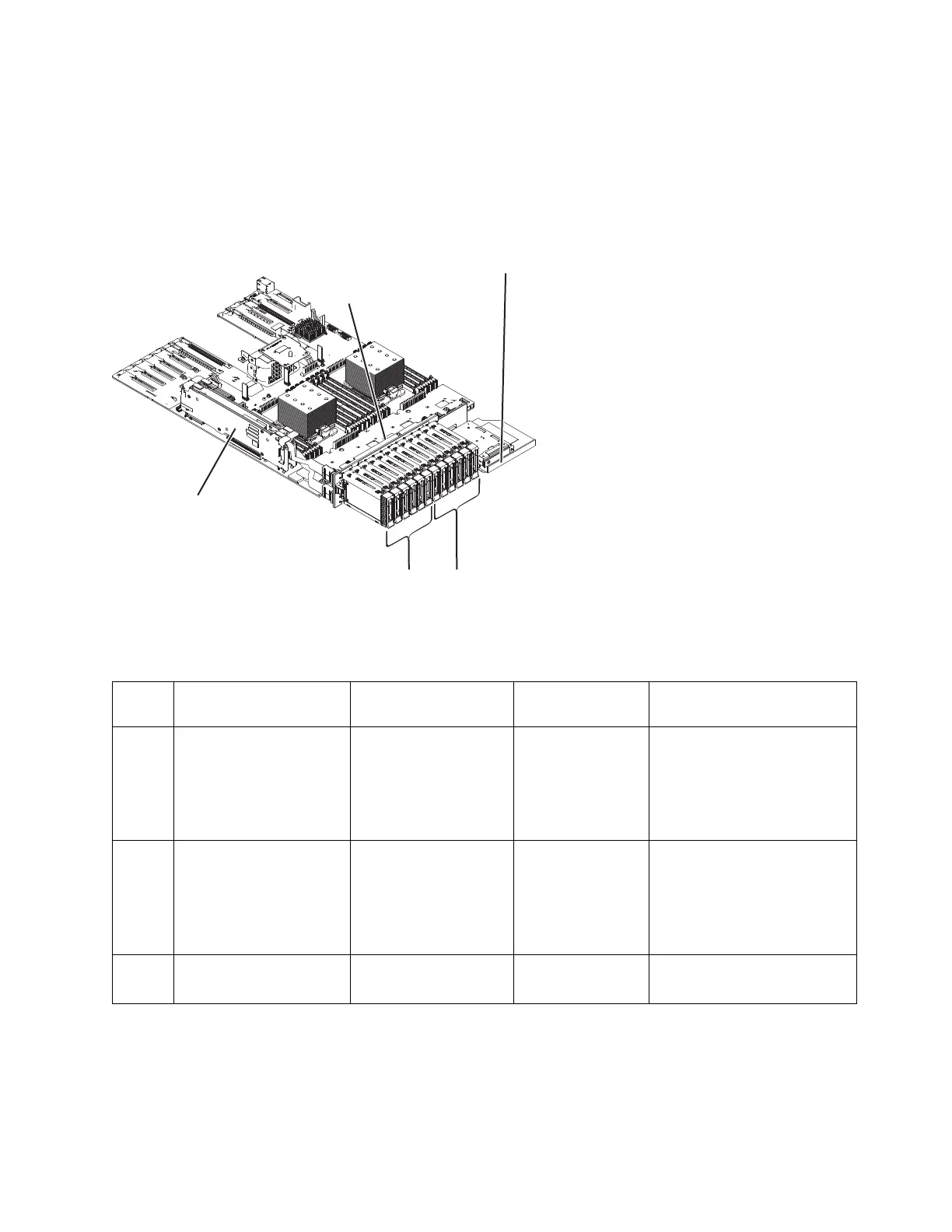

Figure 2. SAS subsystem parts in the base function storage configuration with the split disk configuration
SAS subsystem 3
