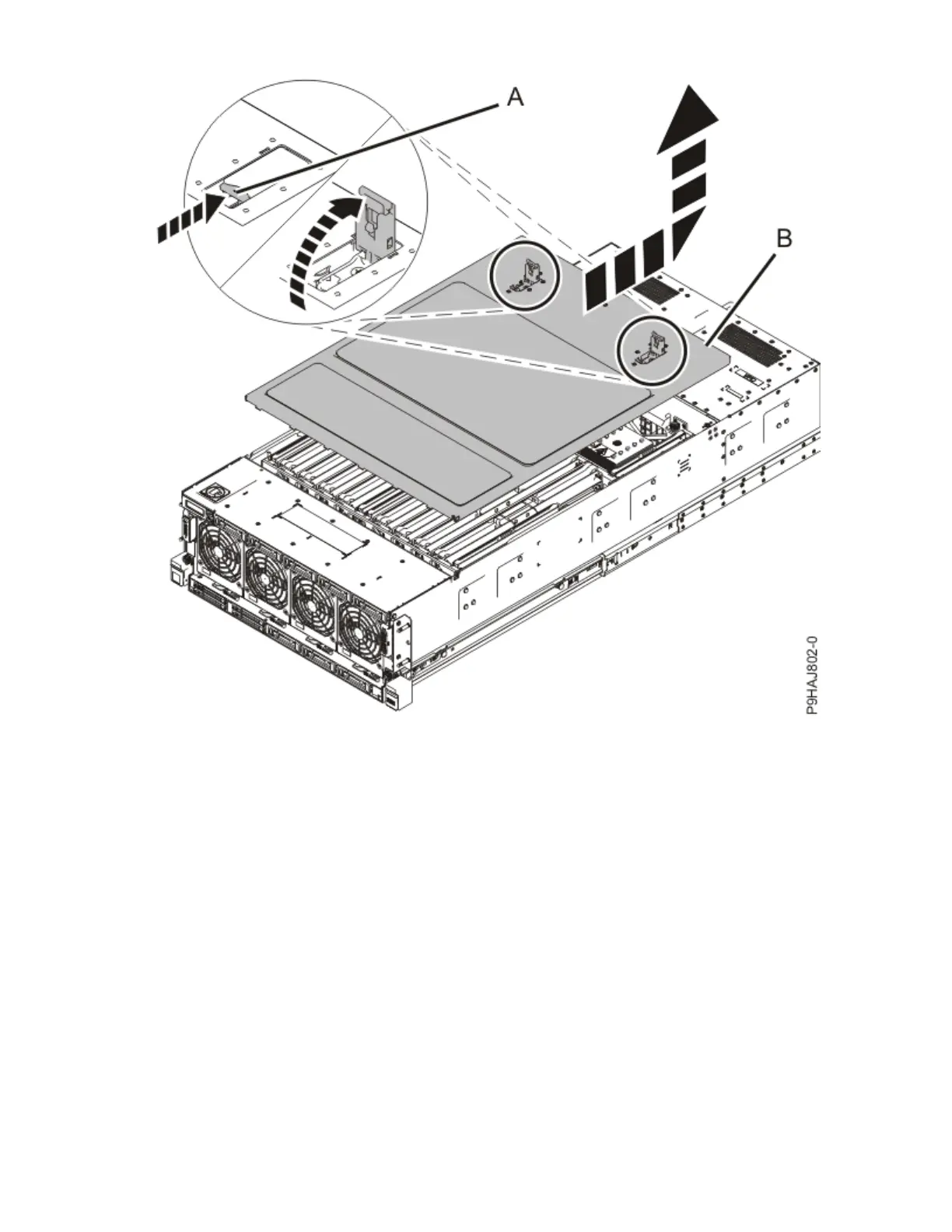

Figure 3. Removing the service access cover
8. Remove the memory riser.
a) Open the release latches (A) on the memory riser as shown in the following gure.
Open the latches to the fully upright 90 degree position.
b) Pull out the memory riser from the slot by holding onto the latches.
Memory modules for the 9040-MR9
7
