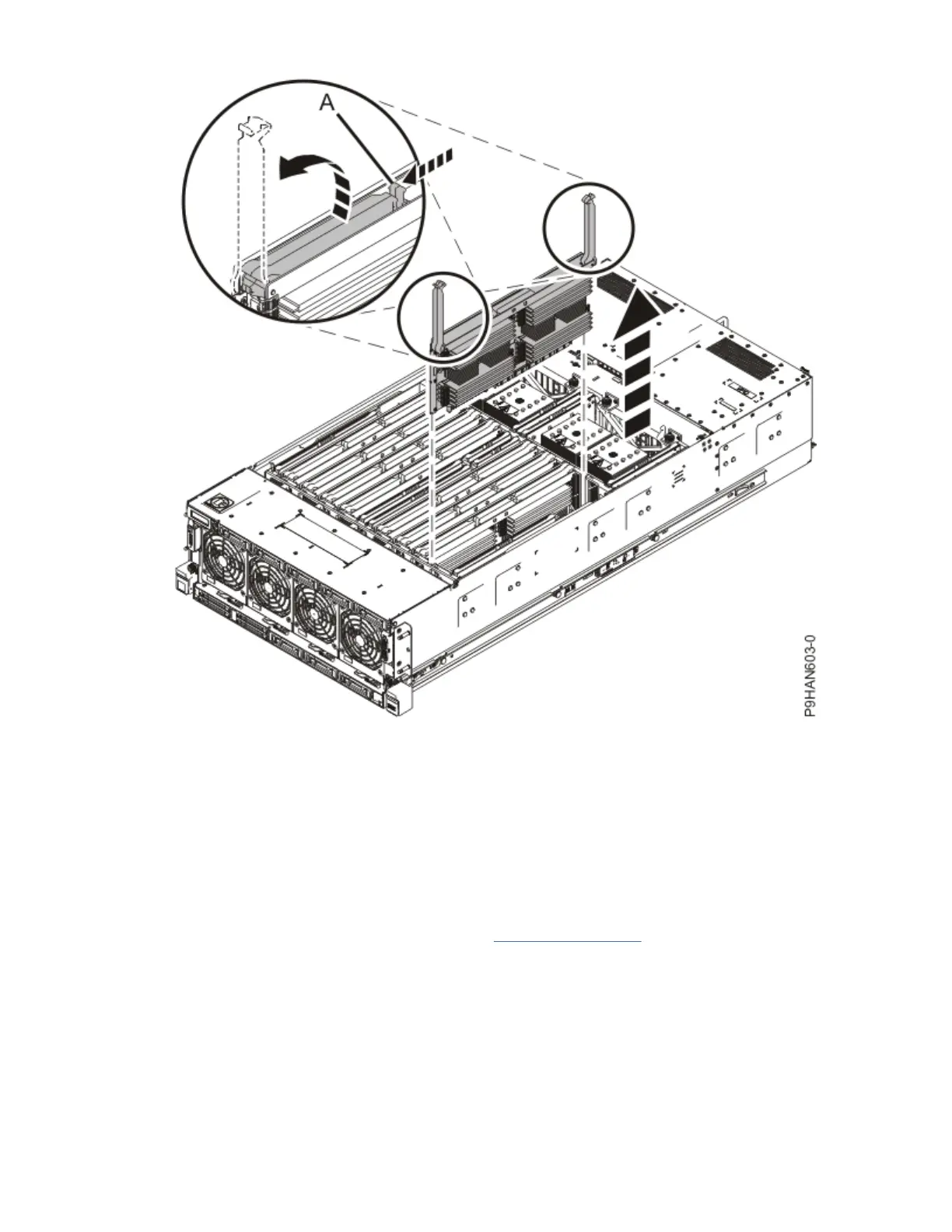

Figure 26. Removing a memory riser
Permanently removing a memory module from the 9040-MR9 system
To permanently remove memory modules from the system, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. To unlock the memory module from its connector, simultaneously push both of the locking tabs away
from the module in the direction that is shown in Figure 27 on page 38
.
The lever action of the tabs pushes the memory module out of the connector. If you nd it hard to
open the tabs with your ngers, you may use the tips of ball point pens, or the eraser ends of pencils.
The levers must be opened simultaneously, so that the memory module lifts straight up.
Memory modules for the 9040-MR9
37
