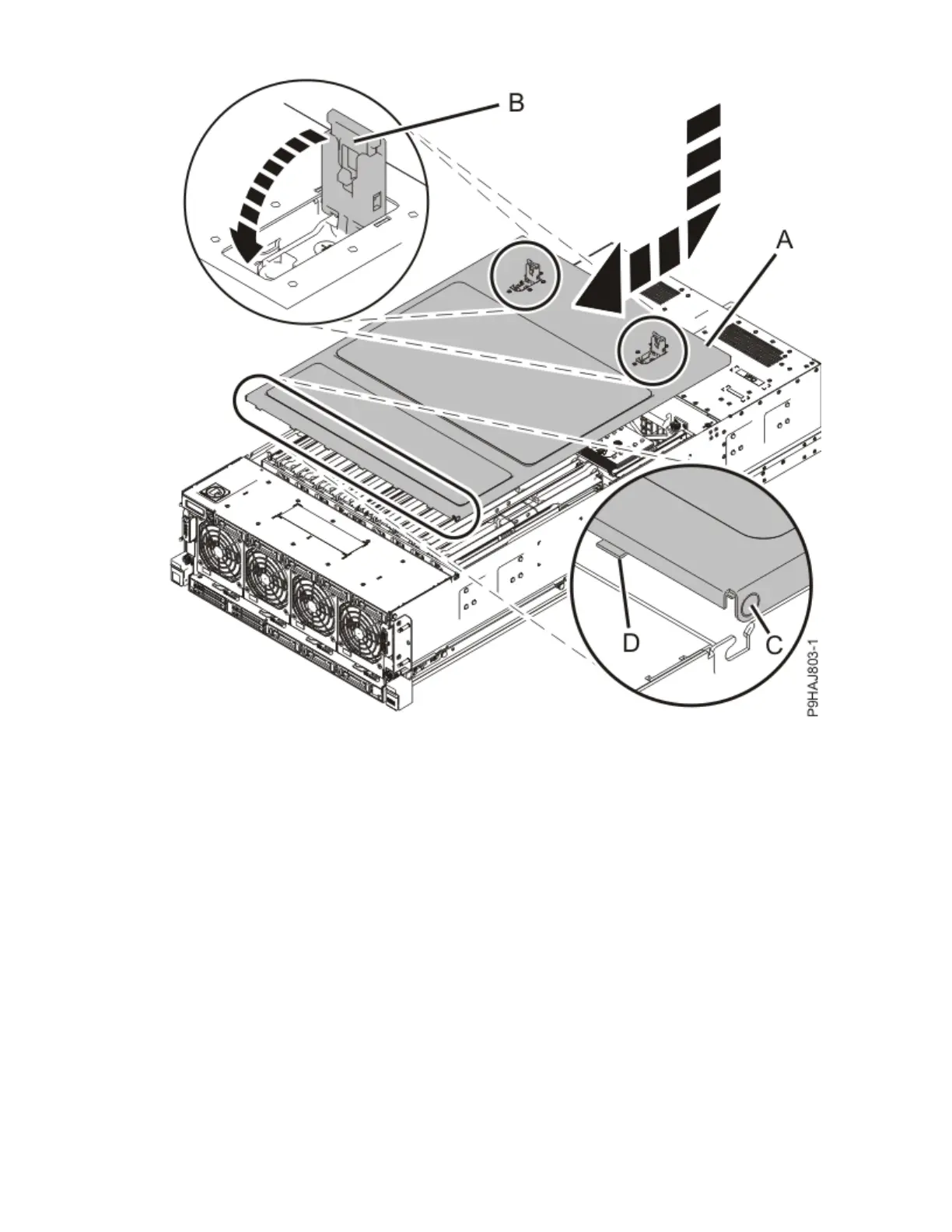

Figure 29. Installing the service access cover
4. Complete the following steps to place the system in the operating position.
a. Unlock the blue rail safety latches (A) by pushing them towards the front as shown in the following
gure.
b. Push the system unit back into the rack as shown in the following gure until both release latches
of the system unit lock into position. Ensure that any cables do not catch or bind as you push in the
system.
Note: Slide the system unit slowly into the rack to ensure that your ngers do not get caught in the
side rails.
40
Power Systems: Power Systems: Memory
