IBM Power System E950 - Page 75

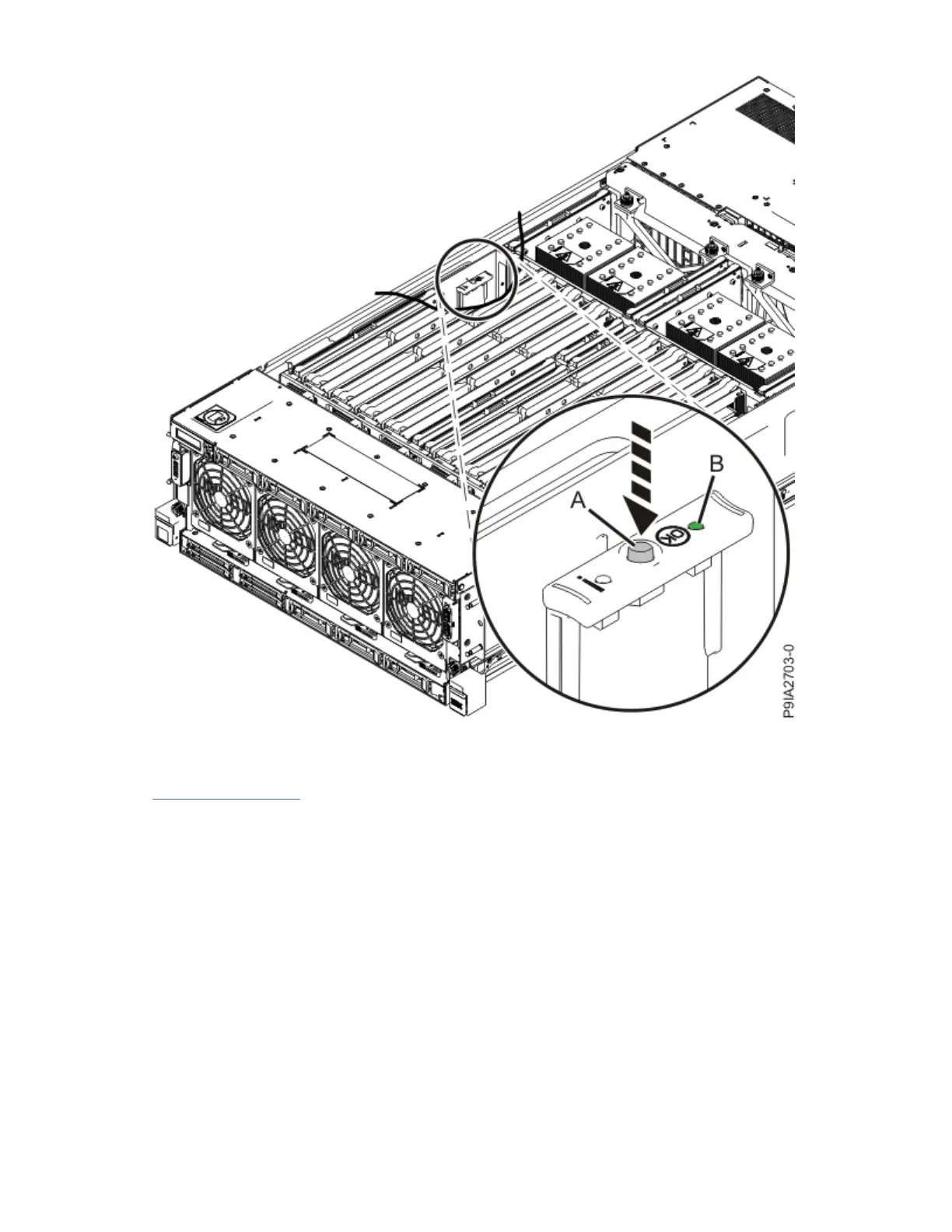

Figure 43. Activating the identify LED
9. Locate the amber LED for the failed memory riser. Make a note of which memory riser is lit.
Figure 44 on page 62 shows the locations (A) of the memory riser LEDs.
Memory riser for the 9040-MR9
61
