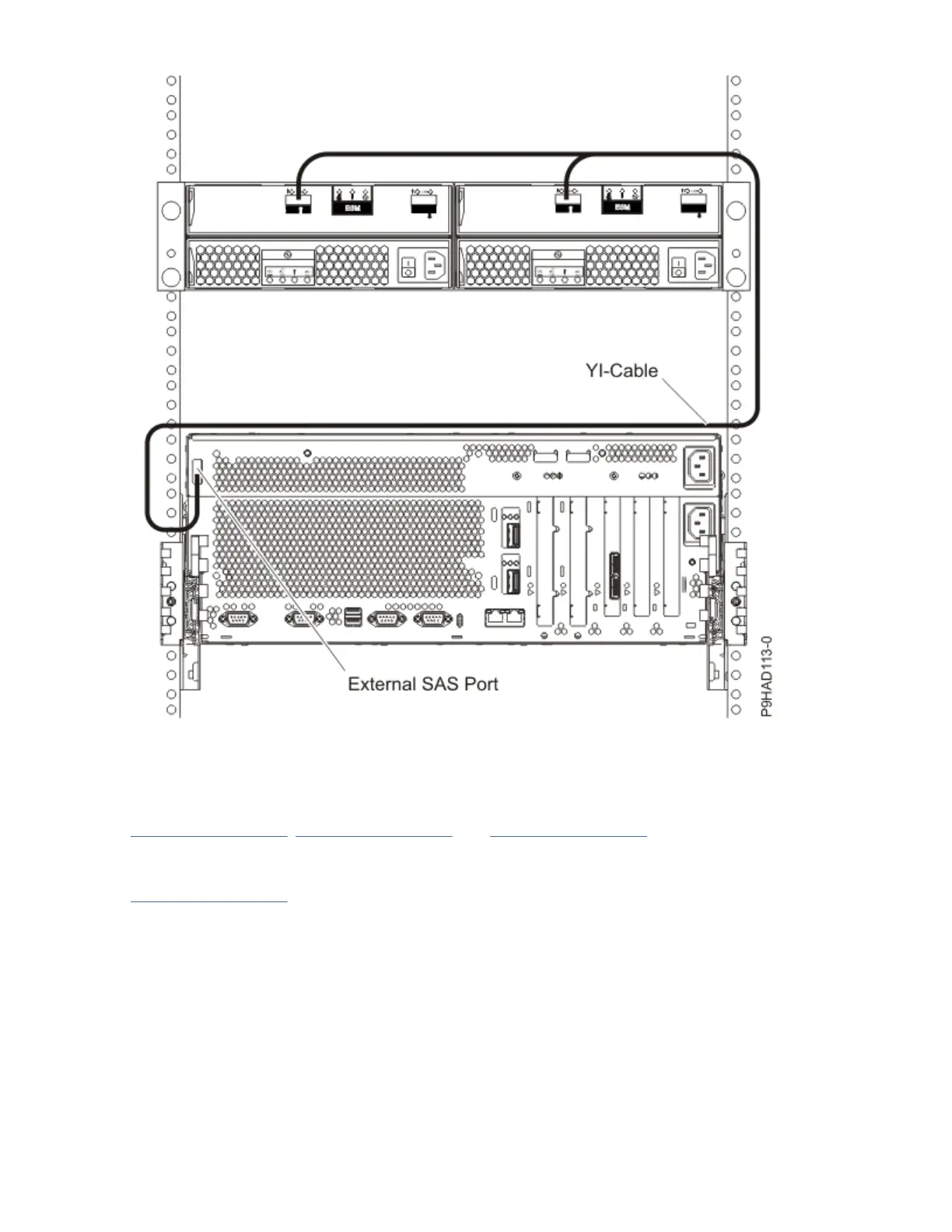

Figure 42. System external SAS adapter port to a disk expansion drawer
Two RAID SAS adapters with HD connectors to disk expansion drawer in a multi-initiator high
availability (HA) mode (dual storage adapter conī³guration)
Figure 43 on page 119, Figure 44 on page 120, and Figure 45 on page 121 illustrate connecting two SAS
RAID adapters with HD connectors to one, two, or three disk expansion drawers in a multi-initiator HA
mode.
Figure 46 on page 122 illustrates connecting two pair of SAS RAID adapters with HD connectors to one
disk expansion drawer in a multi-initiator HA mode.
118
Power Systems: Site and hardware planning
