IBM Power System S814 - Page 43

Store the shipping bracket if you want to move your system at a later date.
2. Cable the server.
a. Plug the top two power cords into the power supply and attach the cables to the handles on the
power supply with cable ties or hook-and-loop fasteners.

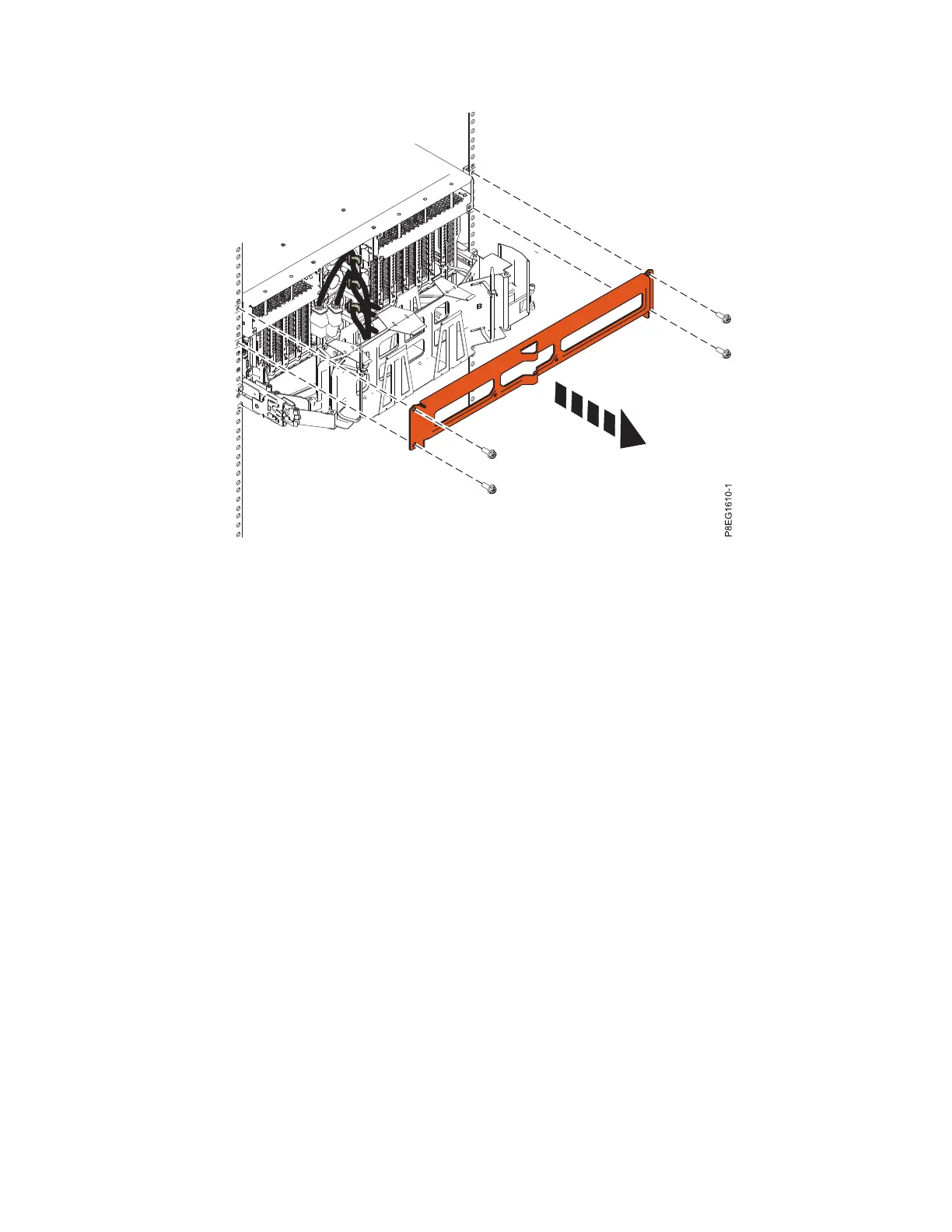

Figure 18. Removing the shipping bracket from the rear of the chassis
Installing the IBM Power System S814 (8286-41A) 27
