Use this information with your specific system unit and operating system documentation. General
information is intended for all users of this product. Service information is intended for a service
representative that is specifically trained on the system unit and subsystem being serviced.
Note: All SAS subsystem features for 8202-E4C, 8202-E4D, 8205-E6C, or 8205-E6D systems share the same
integrated base system board (custom card identification numbers (CCIN) 2B2C or 2B4A for the
two-socket model and 2B2D or 2B4B for the one-socket model). The physical location code for the base
system board is Un-P1.
Feature locations
Use Figure 1 and Table 1 to review the features and locations of the SAS base subsystem.
Table 1. SAS base subsystem (feature code 5618) components
Diagram
location Part name CCINs Physical location codes
A Base backplane
1
2B2C, 2B2D, 2B4A,
or 2B4B
Un-P1
B Tape drive (optional)
1
NA Un-P1-D1 (SAS connector) or Un-P1-D2 (USB
connector)
Note: The tape drive bay is the same for both.
C DVD drive
1
NA Un-P2-D9
D Disk drive backplane 2BD5 Un-P2
E Disk drives (6 SFF drive disk
bays, 2 closed "filler" bays)
NA Un-P2-D1 - Un-P2-D6
1
Feature is part of the SAS subsystem but separate from feature code 5618.
Use Figure 2 on page 3 and Table 2 on page 3 to review the features and locations of the SAS subsystem
with a two-way split drive backplane.

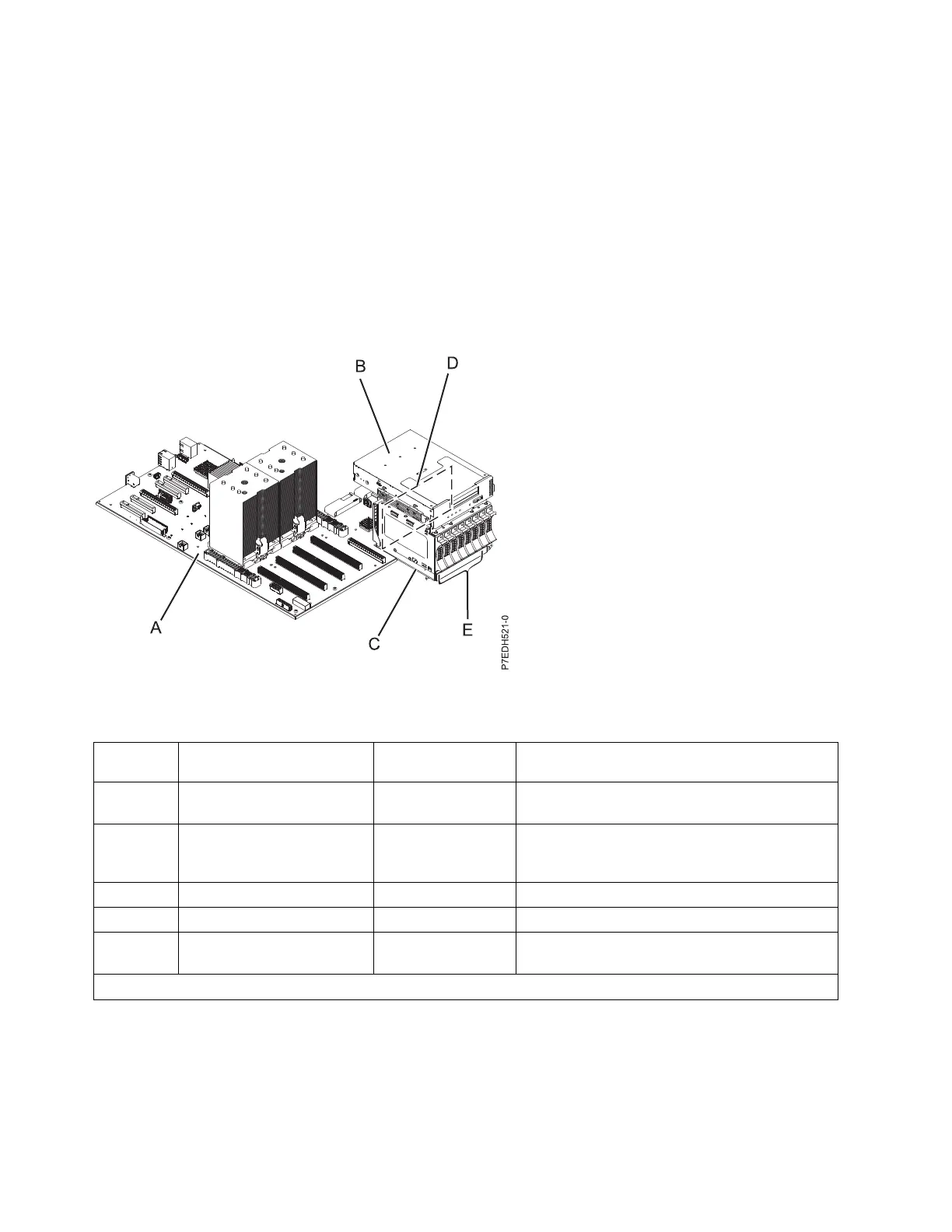

Figure 1. SAS base subsystem overview
2 SAS subsystem
