IBM RS/6000 7014-S00

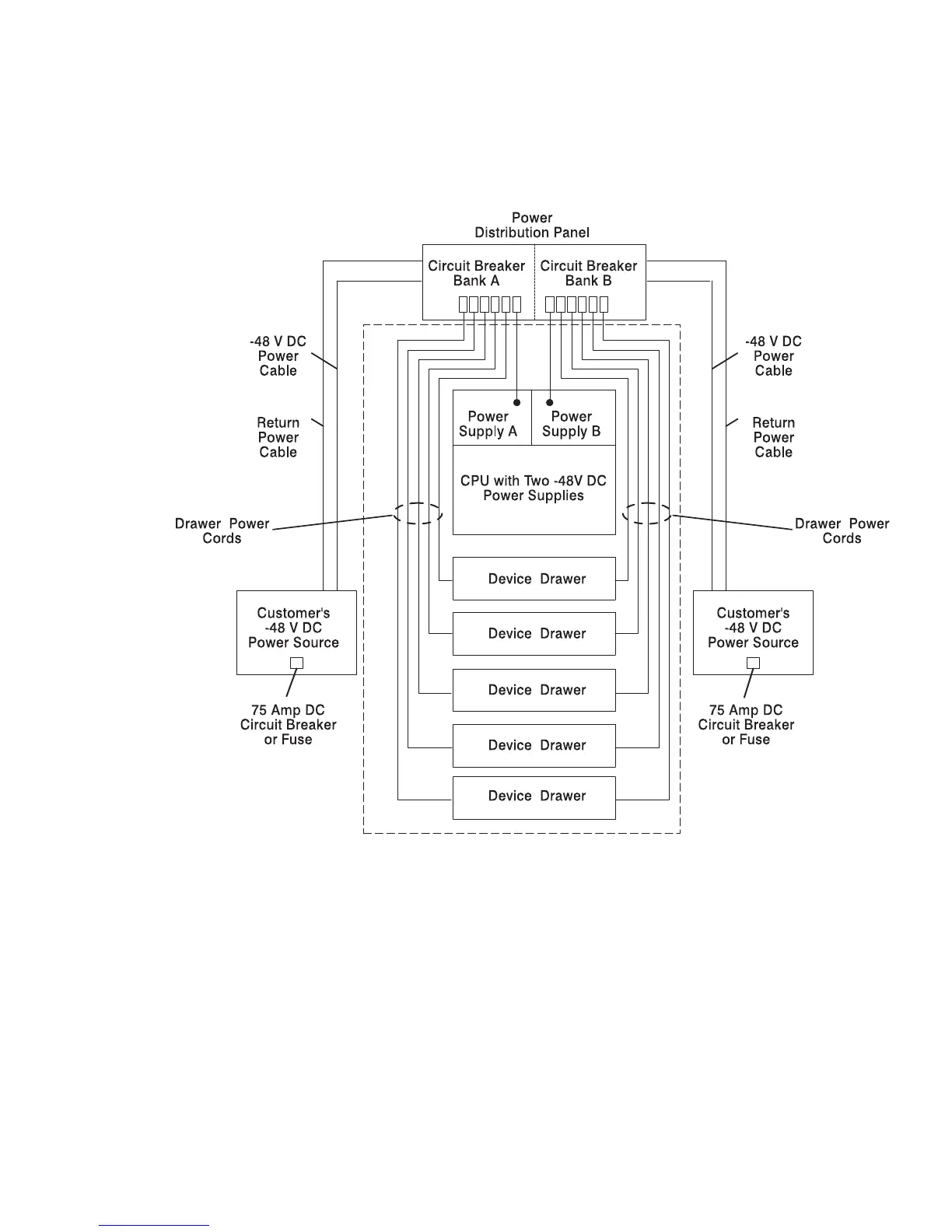

The following diagram shows power distribution in a typical Model S00 rack
configuration connected to two customer supplied power sources. Note also how
each bank of circuit breakers in the PDP is connected to a different power source.
Note how each drawer in the rack is powered by each power source.
Chapter 1. Reference Information 1-11
