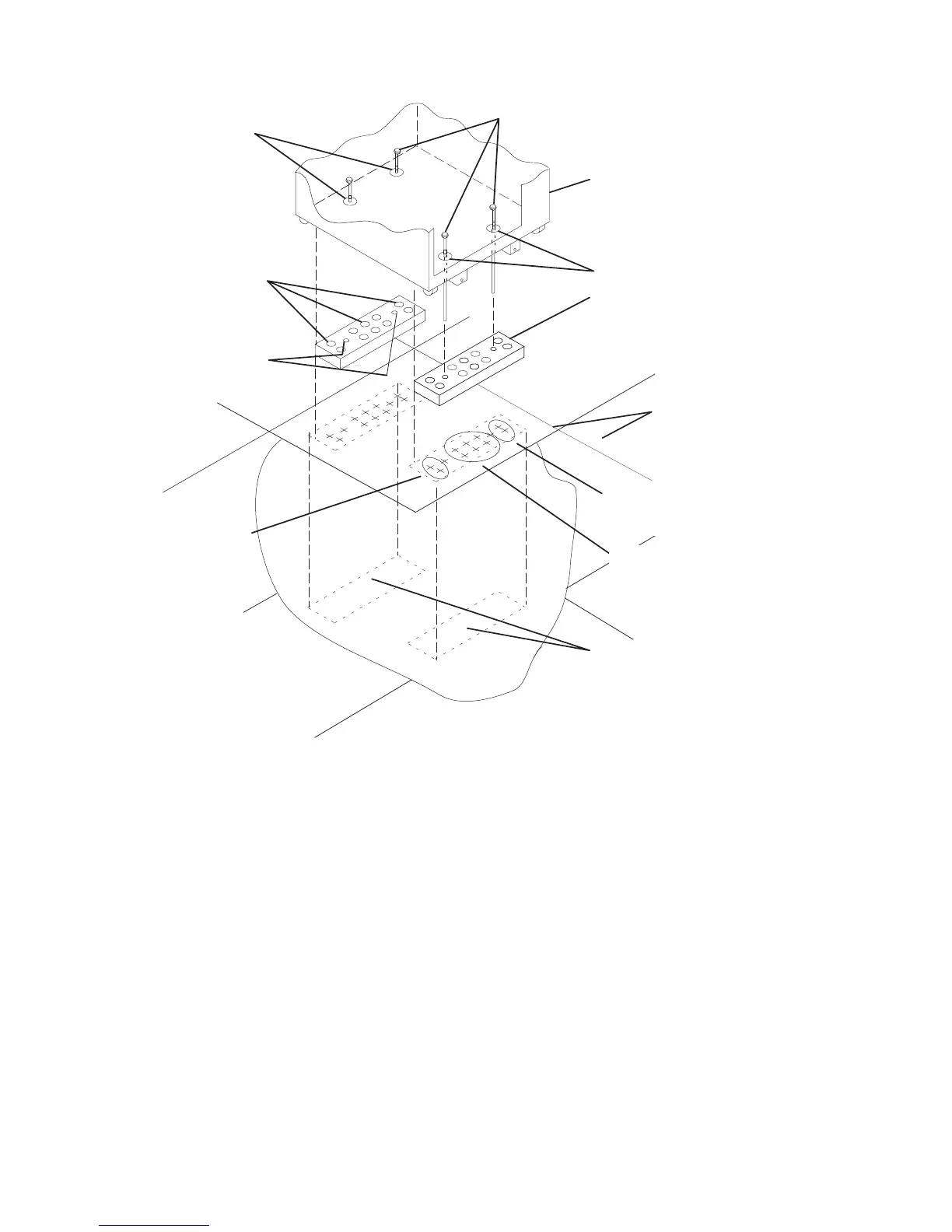

Mounting Plate (2)
Holes for Anchor
Bolts (10)
Tapped Holes for
Rack Mounting Bolts
Mounting Holes
Mounting Holes
Rack Mounting Bolts
Front of
Rack
Projection of Mounting
Plates onto Concrete Floor
Raised
Floor Panels
Location Marks
(Drill One of
These Six Marks)
Location Marks
(Drill One of
These Two Marks)
Location Marks
(Drill One of
These Two Marks)
14. Place the two mounting plates on the locations indicated on the marked
raised-floor panel.
15. Using at least three anchor bolts for each mounting plate, mount the two
mounting plates through the raised-floor panel to the concrete floor.
16. Using the location marks for the leveling feet as a guide, reposition the rack over
the mounting plates.
17. Place the four rack-mounting bolts through the four metal washers and then
through the four plastic isolator washers. The flat side of the plastic isolator
washer must be facing upward.
18. To align the rack over the mounting plates, do the following:
a. Place the four rack-mounting bolts in the mounting positions at the bottom of
the rack.
2-14 7014 Model S00 Rack Installation and Service Guide
