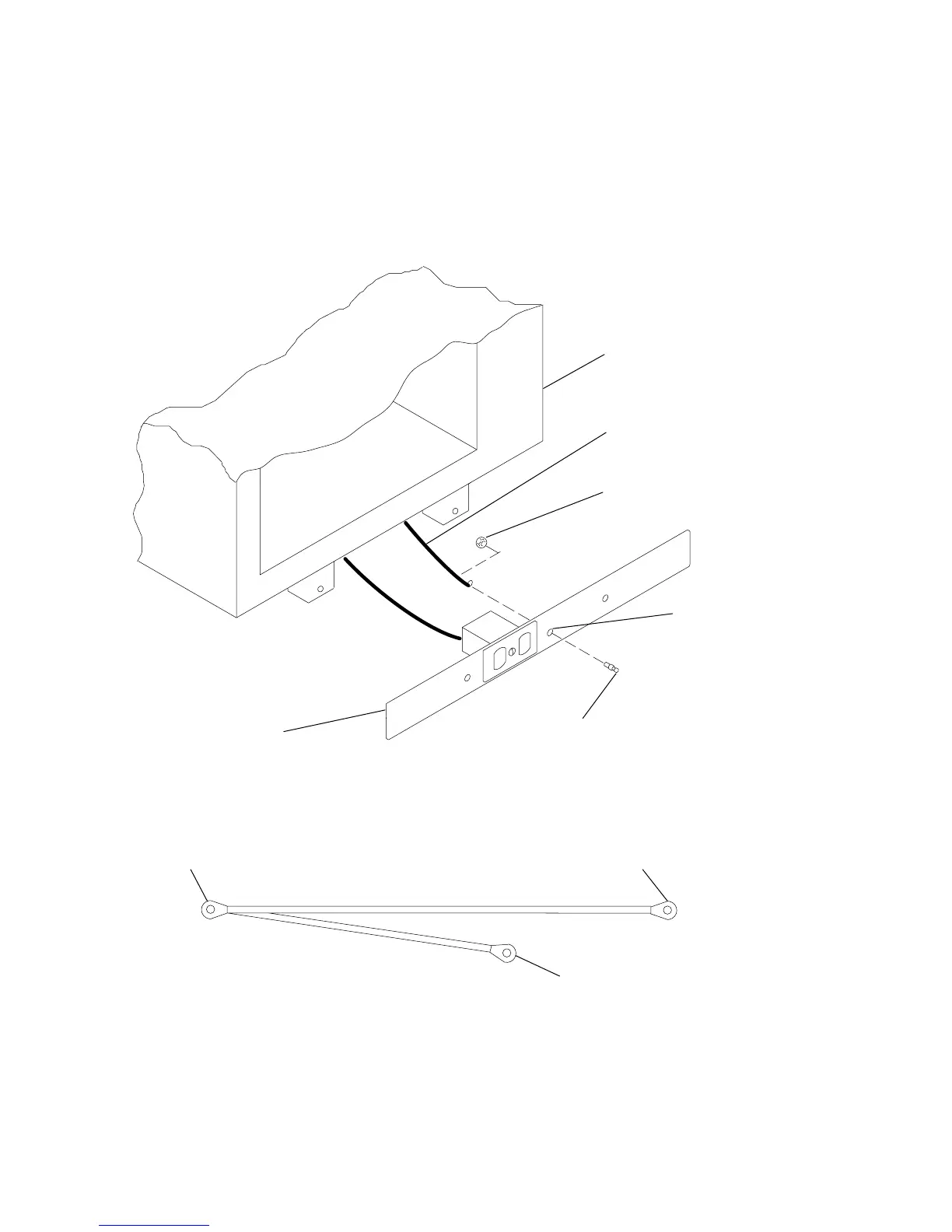

5. Locate the Y-shaped grounding cable supplied with the mounting plates.
Connect the long end of the ground cable to the threaded side of the ground
cable lug (inside the mounting plate), and then install and tighten the ground lug
nut. Feed the ground cable underneath the rack.
Note: The two remaining connectors of the ground cable are done in step 17 on
page 2-24.
Mounting
Plate
Front of Rack
Ground Lug
Long End of
Ground Cable
Mounting
Hole
Long End of Ground
Cable
Y-End of
Ground Cable
Ground Connector
(Short End of
Ground Cable)
Ground Lug Nut
2-18 7014 Model S00 Rack Installation and Service Guide
