3. After the customer has connected the power cable from the customer power
source to the electrical outlet assembly, mount the electrical outlet assembly to
the mounting plate using the two mounting screws (provided by the customer).

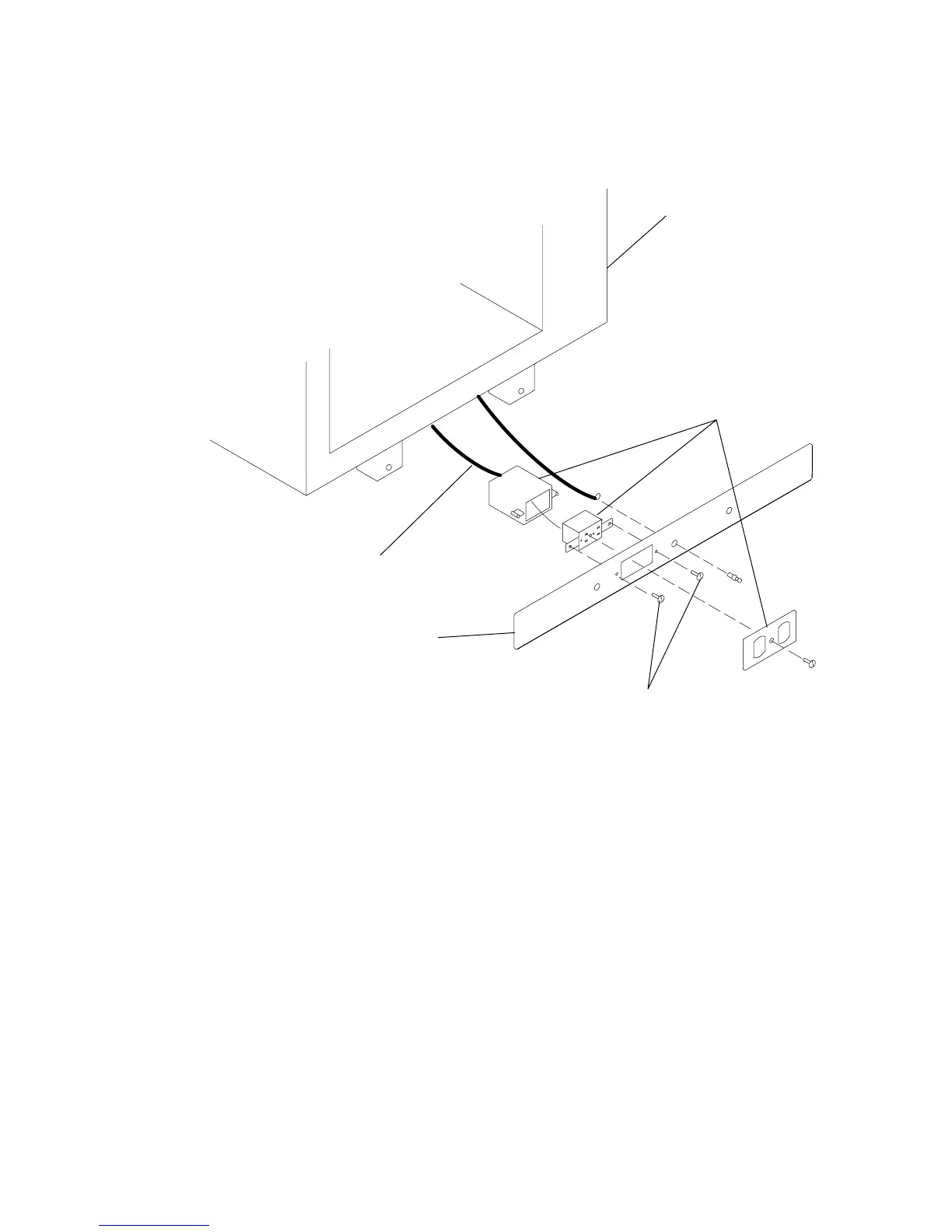

Front of Rack
Mounting Plate
Electrical Outlet
Assembly
Power Cable From
Power Source
Mounting Screws
4. Place the ground cable lug through the mounting hole of the mounting plate.
Chapter 2. System Installation 2-17
