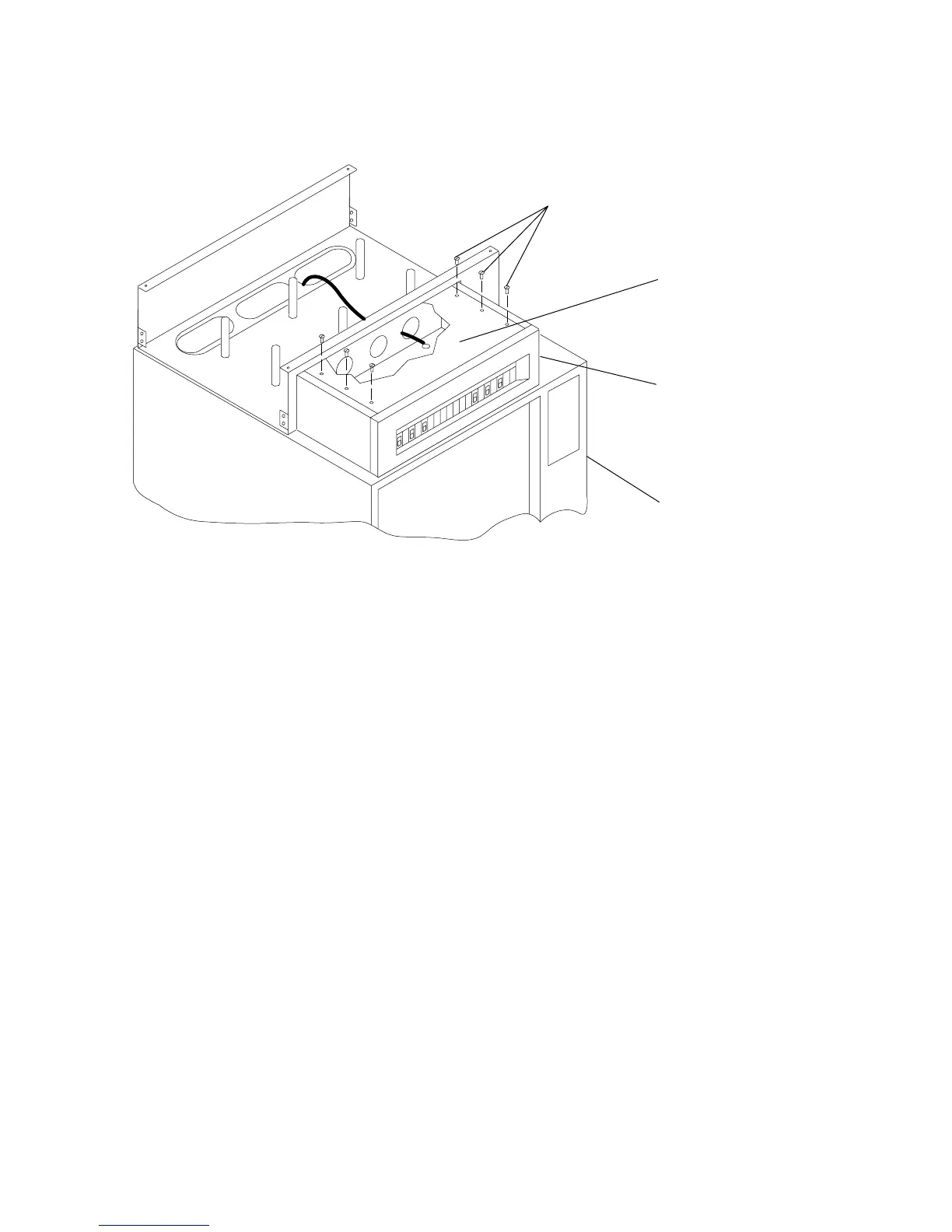

3. Remove the six mounting screws from the top cover of the PDP, and remove the
top cover.
Mounting Screws (6)
Power
Distribution
Panel
Top Cover
Front of
Rack
4. Remove the bus bar shield (insulator) from the PDP.
Attention: The bus bar shield must be properly reinstalled over the return bus
bars to protect against injury when servicing the power distribution panel
5. Ensure that the customer properly installs the external -48 V DC power cables
to the -48 V DC bus bars and the positive return ground cables to the return bus
bars.
2-26 7014 Model S00 Rack Installation and Service Guide
