Memory Cards
Removal of Memory Cards
1. If you have not already done so, shutdown the system as described in “Stopping
the System Unit” on page 7-4.
2. If you have not already done so, unplug the system unit power cable from the
electrical outlet.
3. If you have not already done so, remove the front, rear, and left side covers as
described in “Removal of Covers” on page 7-5.
4. Remove the processor and memory card cover as described in “Removal of
Processor and Memory Card Cover” on page 7-10.
5. Remove the memory card shield from in between the two memory cards.

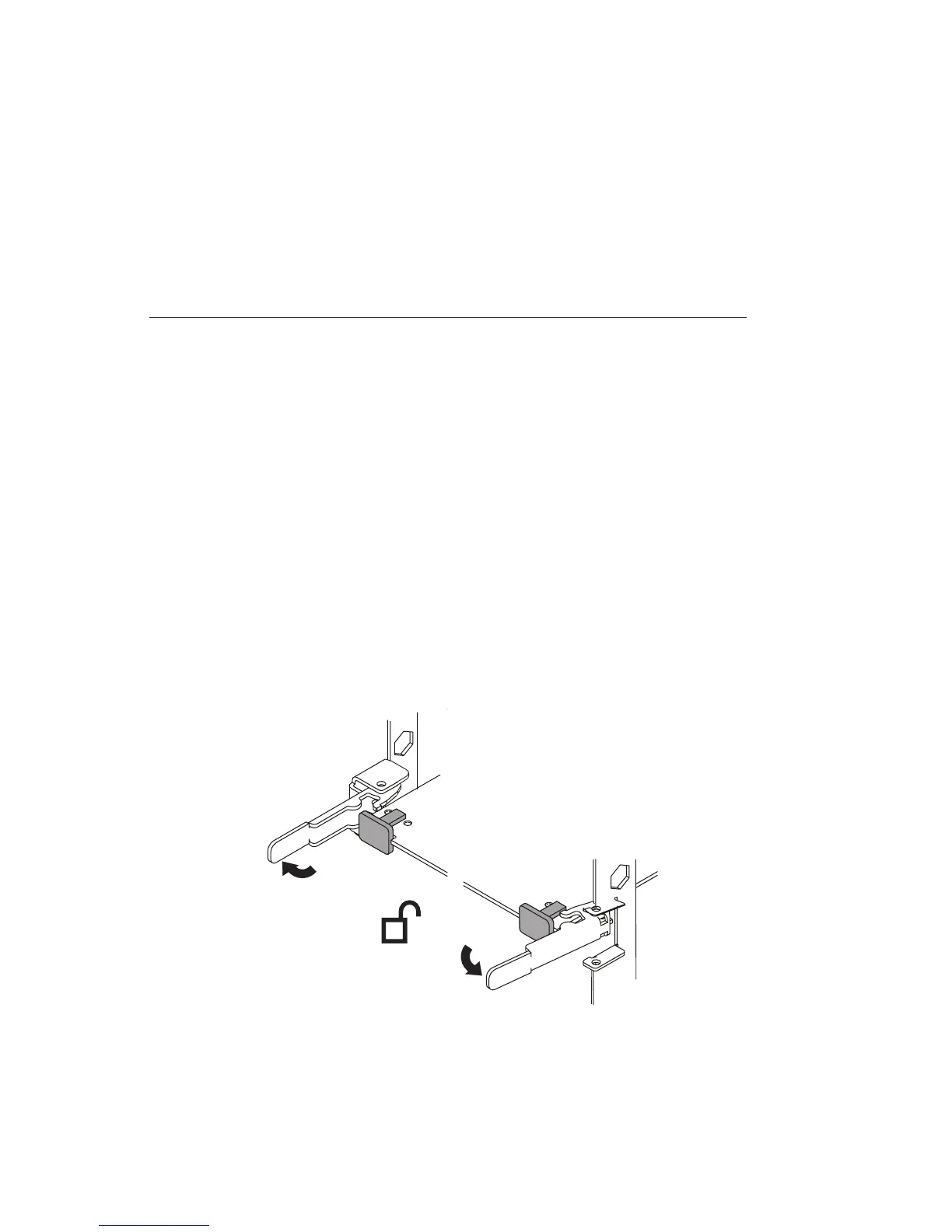

6. The card is secured in place with latches at corners of the memory card. Open
the card latches and remove the card.
Attention: To prevent damage to the card and to the card connectors, open
and close both latches at the same time.
Chapter 7. Removal and Replacement Procedures 7-11
