5. Locate the drive you wish to remove.

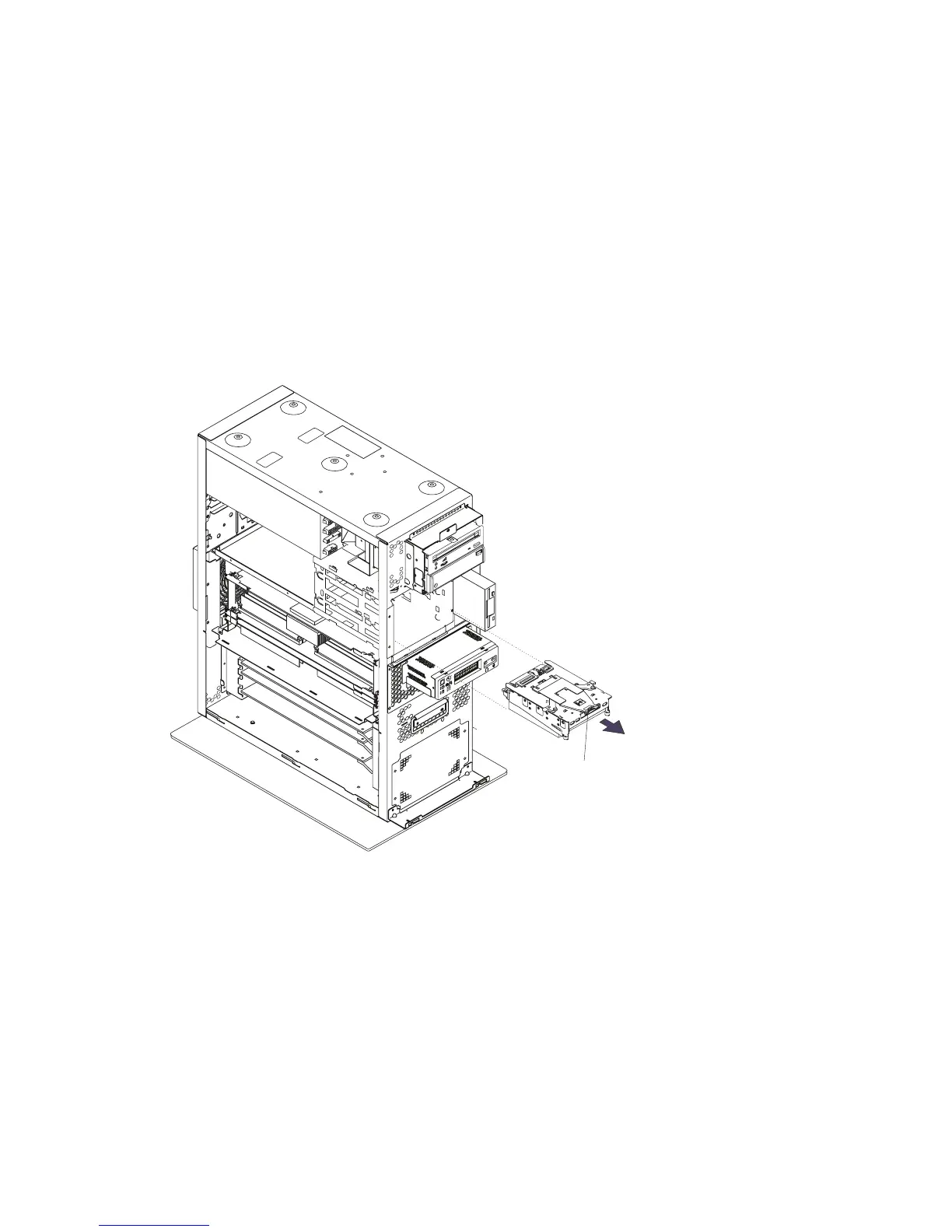

6. Pull the disk drive lever toward you and remove the drive unit from the system
unit .
Pull Lever
To Front
Replacement of Disk Drives
1. Align the drive with the disk drive cage rails.
2. Slide the drive into the system unit until it connects with the backplane at the
rear of the drive bay.
3. Configure the drive using smit. Then wait five minutes for the drive to warmup.
See “Configuration of Media Drives” on page 7-26 for instructions on configuring
the drive.
7-24 Service Guide
