CEC Fan
Removal of CEC Fan
1. If you have not already done so, shutdown the system as described in “Stopping
the System Unit” on page 7-4.
2. If you have not already done so, unplug the system unit power cable from the
electrical outlet.
3. If you have not already done so, remove the front, back and right side covers as
described in “Removal of Covers” on page 7-5.
4. Remove the retaining screws (11) that secure the rear fan assembly to the
system unit.

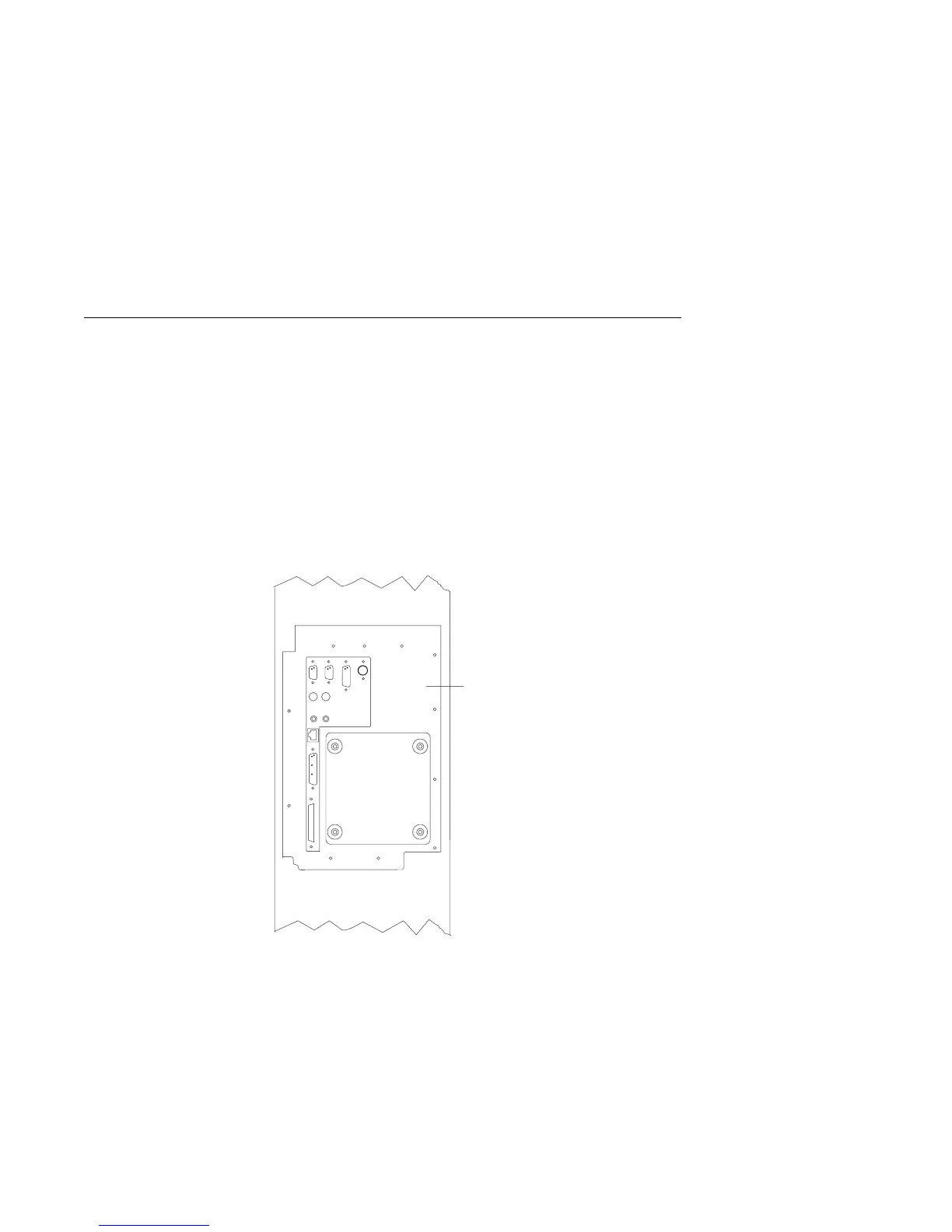

CEC Fan
Assembly
5. Disconnect the fan from the connector in the cable.
6. Pull the rear fan assembly out from the system unit.
Replacement of CEC Fan
When replacing the fan assembly, insert the left side first to ensure proper seal.
Perform the removal steps in the reverse order.
