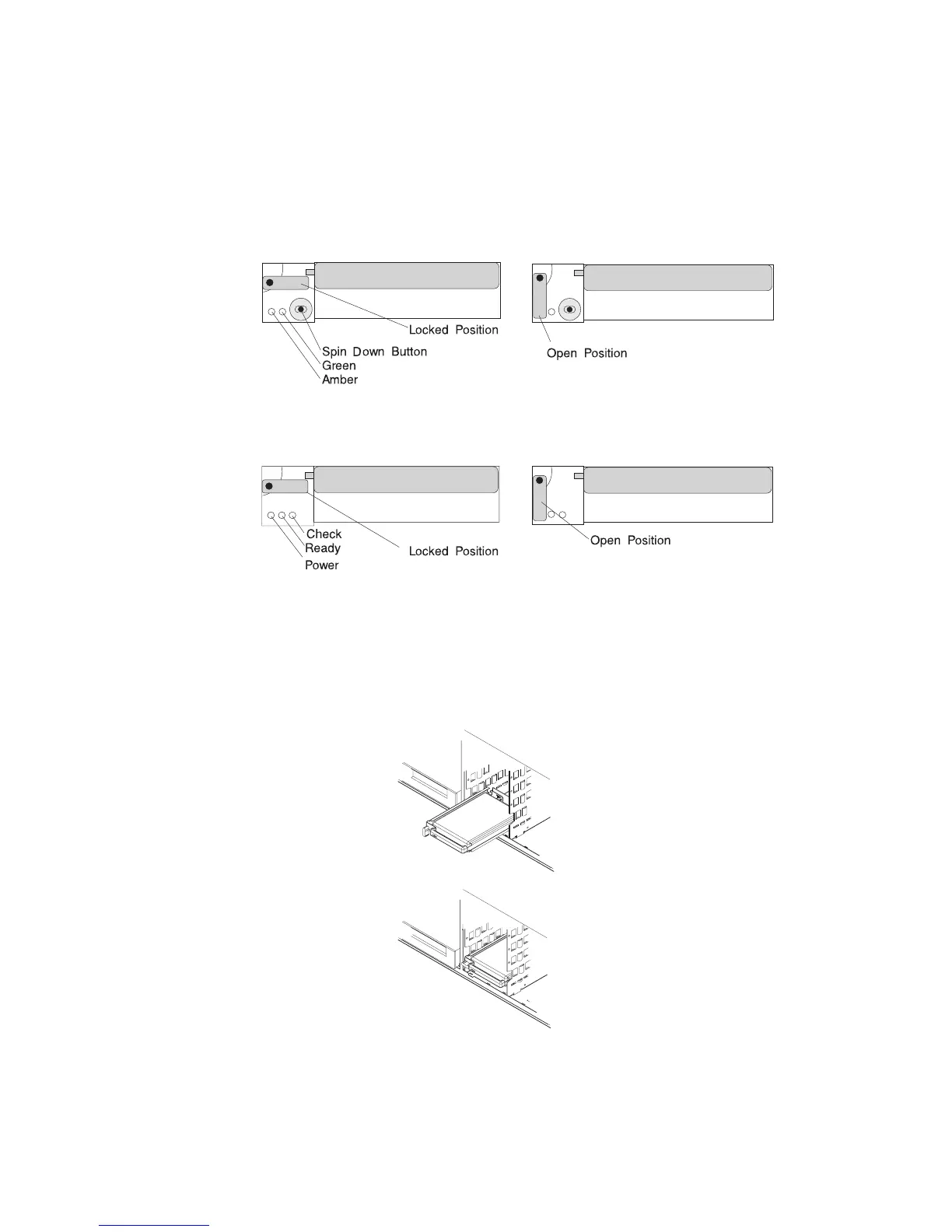

a. Rotate the carrier latch to the open position.
1. SCSI Disk Drive
2. SSA Disk Drive
b. Position the drive carrier assembly horizontally, with the connector facing into
the bay.
c. Align the side of the carrier with the raised guides on the left of the bay.
d. Slide the carrier into the bay gently to keep from damaging the hot swap disk
drive. Slide the carrier to the rear of the bay until it is seated into the con-
nector.
Chapter 7. Removal and Replacement Procedures 7-15
