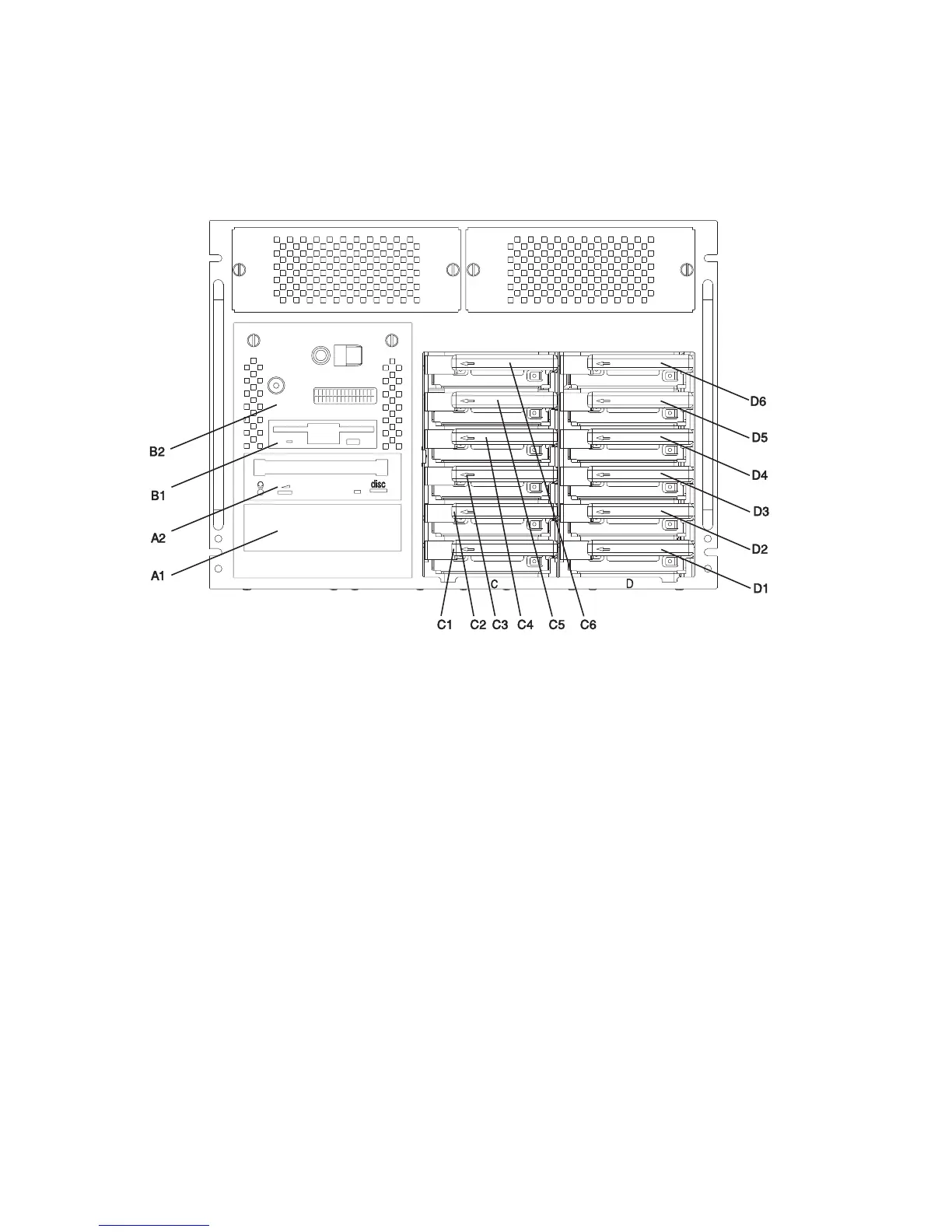

Bay Locations
B2 Optional SCSI Boot Disk Drive (behind
Op Panel Display)
C5 Hot-Swappable Disk Drive
B1 Diskette Drive C6 Hot-Swappable Disk Drive
A2 CD–ROM Drive D1 Hot-Swappable Disk Drive
A1 Media Bay (can be CD–ROM, Tape, or
non-hot-swappable hard disk drive)
D2 Hot-Swappable Disk Drive
C1 Hot-Swappable Disk Drive D3 Hot-Swappable Disk Drive
C2 Hot-Swappable Disk Drive D4 Hot-Swappable Disk Drive
C3 Hot-Swappable Disk Drive D5 Hot-Swappable Disk Drive
C4 Hot-Swappable Disk Drive D6 Hot-Swappable Disk Drive
Chapter 1. Reference Information
1-3
