IBM RS/6000 H50 - I;O Board Locations

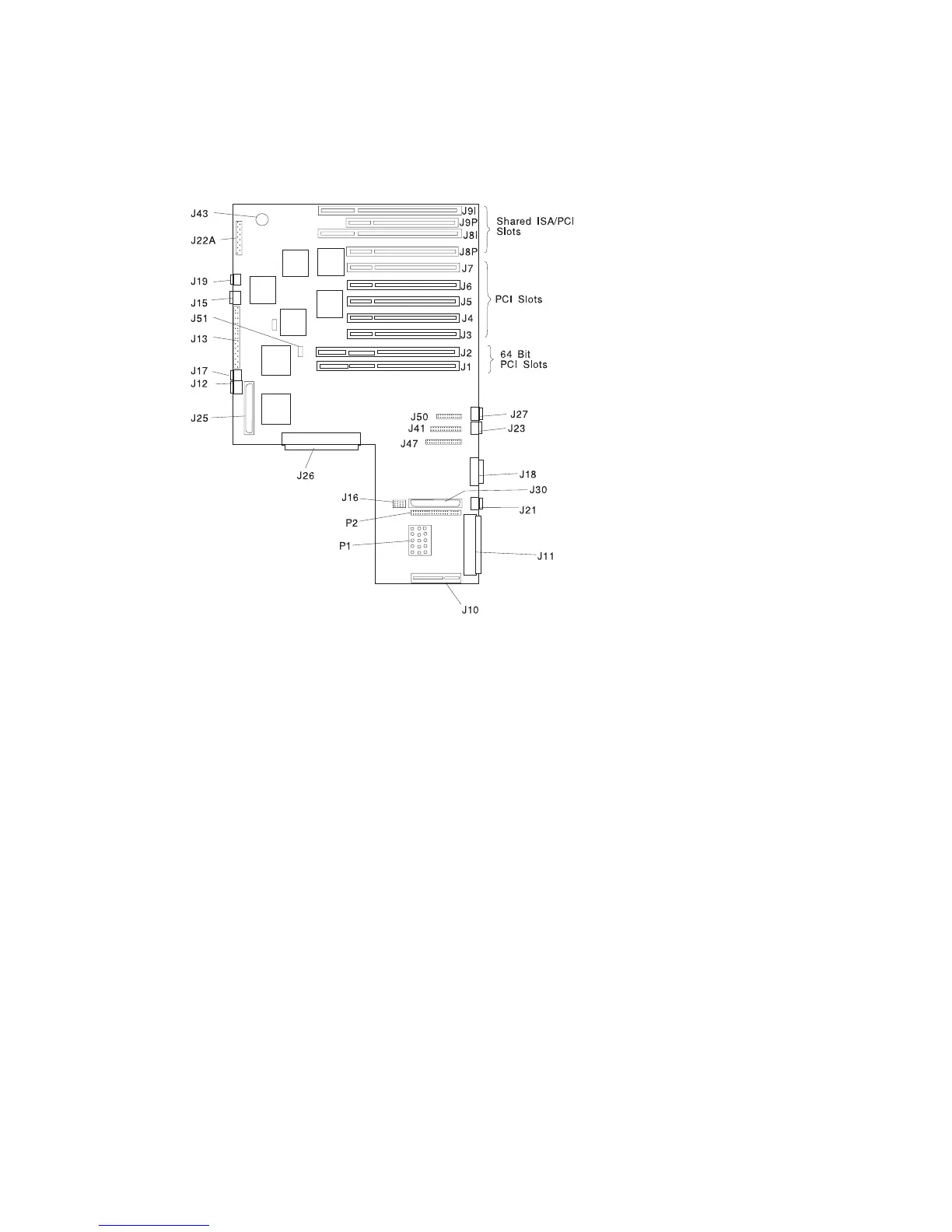

I/O Board Locations
J1,
J2
64-bit PCI connectors J3,
J4,
J5,
J6,
J7,
J8P,
J9P
32-bit PCI connectors
J8I,
J9I
ISA connectors J10 Service Processor
J11 External SCSI connector J12 Not Used
J13 Diskette Drive connector J15 Not Used
J16 SCSI Security Jumper J17 Not Used
J18 Ethernet connector (thick) J19 Not Used
J21 Ethernet connector (twisted pair) J22A Operator Panel
J23 Keyboard connector J25 Internal SCSI connector (port 1)
J26 System Card connector J27 Mouse connector
J30 Internal SCSI connector (port 2) J41 Serial connector (serial port 1 and 2)
J43 Battery Socket J47 Parallel connector
J50 Serial connector (serial port 3) P1,
P2
Power Supply
J51 Fan Monitor Control (FMC) card
1-4 RS/6000 Enterprise Server Model H50 Installation and Service Guide
