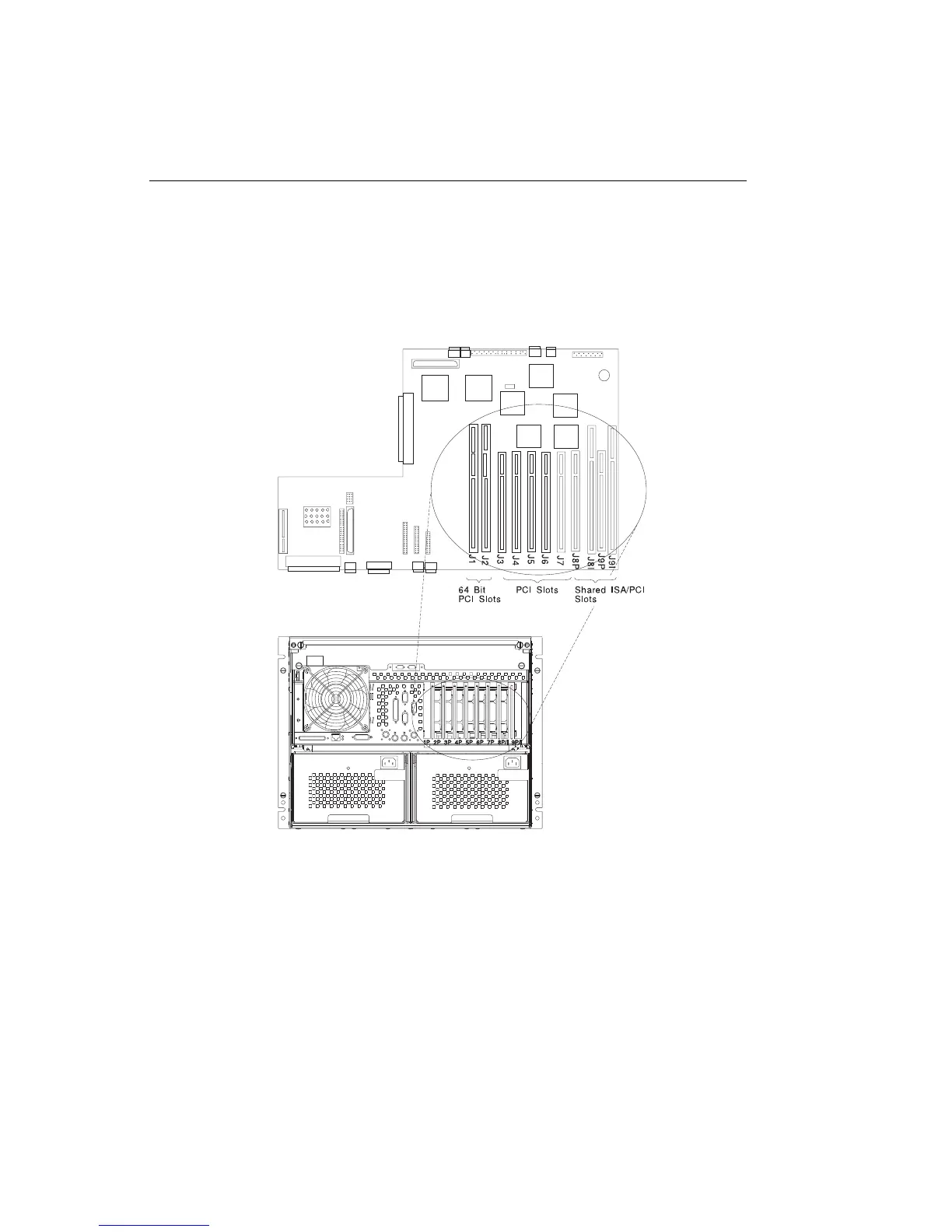

Adapters
Removal
1. Place the drawer in the rear service position, as described in “Rear Service
Position” on page 7-23.
2. Note the slot number of the adapter you are removing.
3. If there are any external cables attached to the adapter, disconnect them.
4. Loosen and remove the screw on top of the adapter's bracket.
5. If there are any internal cables attached to the adapter, disconnect them.
6. Carefully pull the adapter out of the slot.
7. If you are installing another adapter in this expansion slot, follow the instructions
given under “Replacement” on page 7-36 below.
Chapter 7. Removal and Replacement Procedures 7-35
