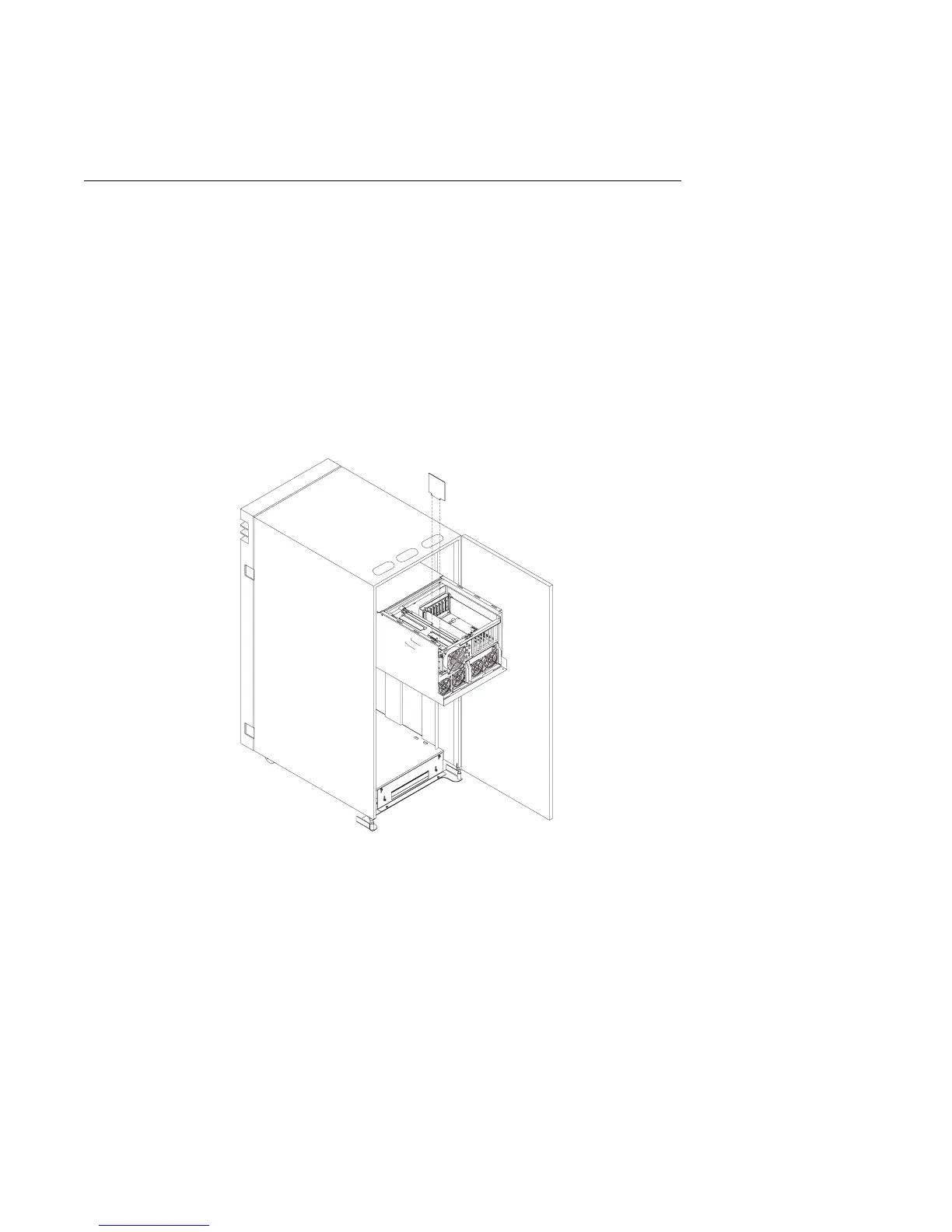

Service Processor Card
Removal
1. Remove the memory cards, as described in “Memory Cards” on page 7-28.
2. Remove the CPU cards, as described in “CPU Card” on page 7-32.
3. Remove the 1 screw from the back, and 2 screws from the base of the CPU
latch mechanism assembly.
4. Remove the CPU latch mechanism assembly.
5. Disconnect the power cables to the I/O board.
6. Remove the service processor card.
Replacement: To replace the service processor card, perform the removal steps
in the reverse order.
7-34
RS/6000 Enterprise Server Model H50 Installation and Service Guide
