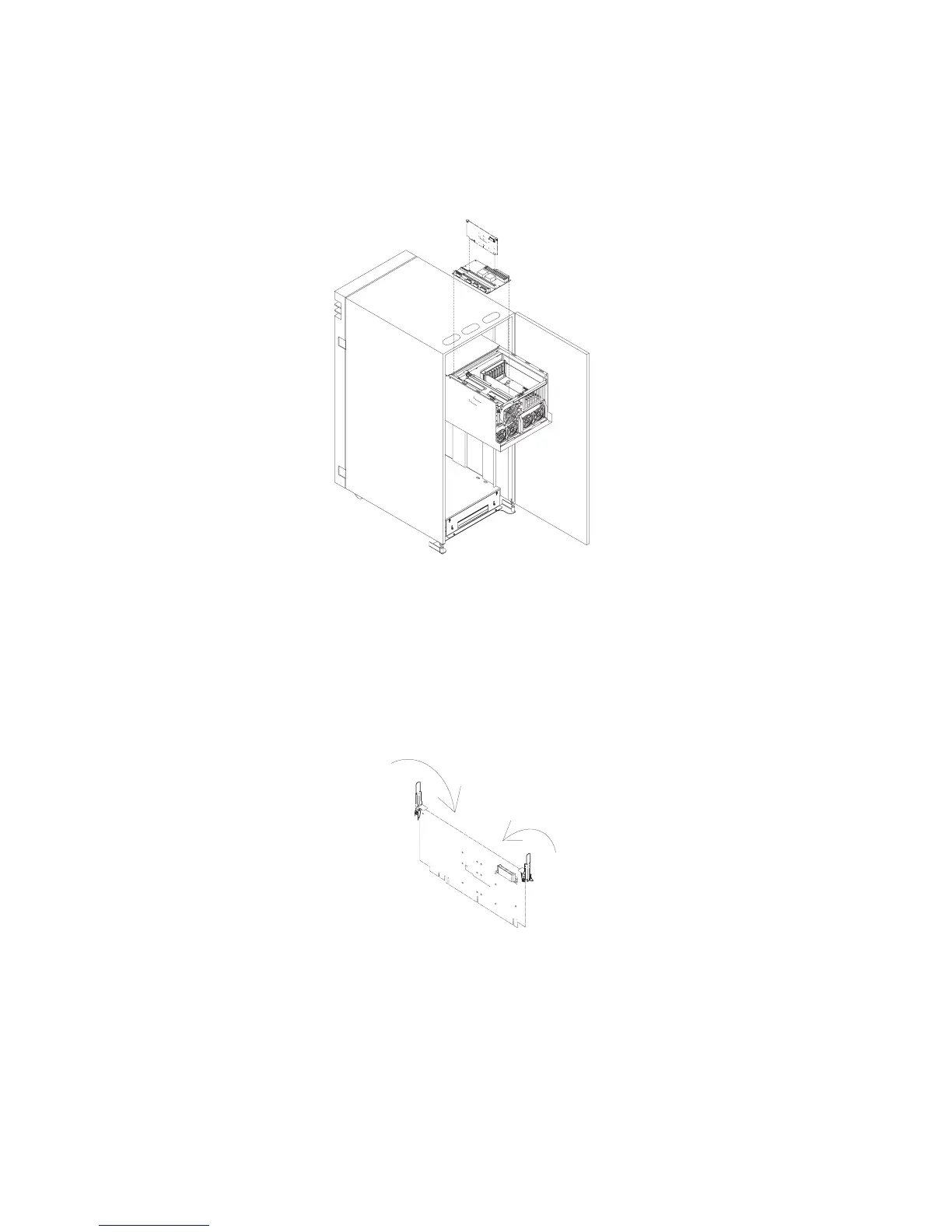

5. Carefully pull the CPU card out of the slot.
Replacement: To replace the CPU Card, perform the removal steps in the
reverse order.
Notes:
1. Carefully set the tabs of the CPU card between the jaws of the latch mechanism.
The tabs must engage the jaws of the latch mechanism.
2. Rotate the latch mechanisms to lock the CPU card in position.
3. Connect the power cable to the CPU card.
Chapter 7. Removal and Replacement Procedures 7-33
