8. Remove the two screws from the top center of the drawer and slide the cover to
the left and lift the front access cover up.
9. Loosen the two retained screws and lift the top air baffle from the drawer.
10. Remove the I/O air duct, which is held in place with velcro, from the plenum
area. Place the duct in a safe location to prevent damage.
11. Loosen the retained screw, slide the bottom air baffle to the left and lift it from
the drawer.
12. Return to the procedure that directed you to place the drawer into the front
service position.

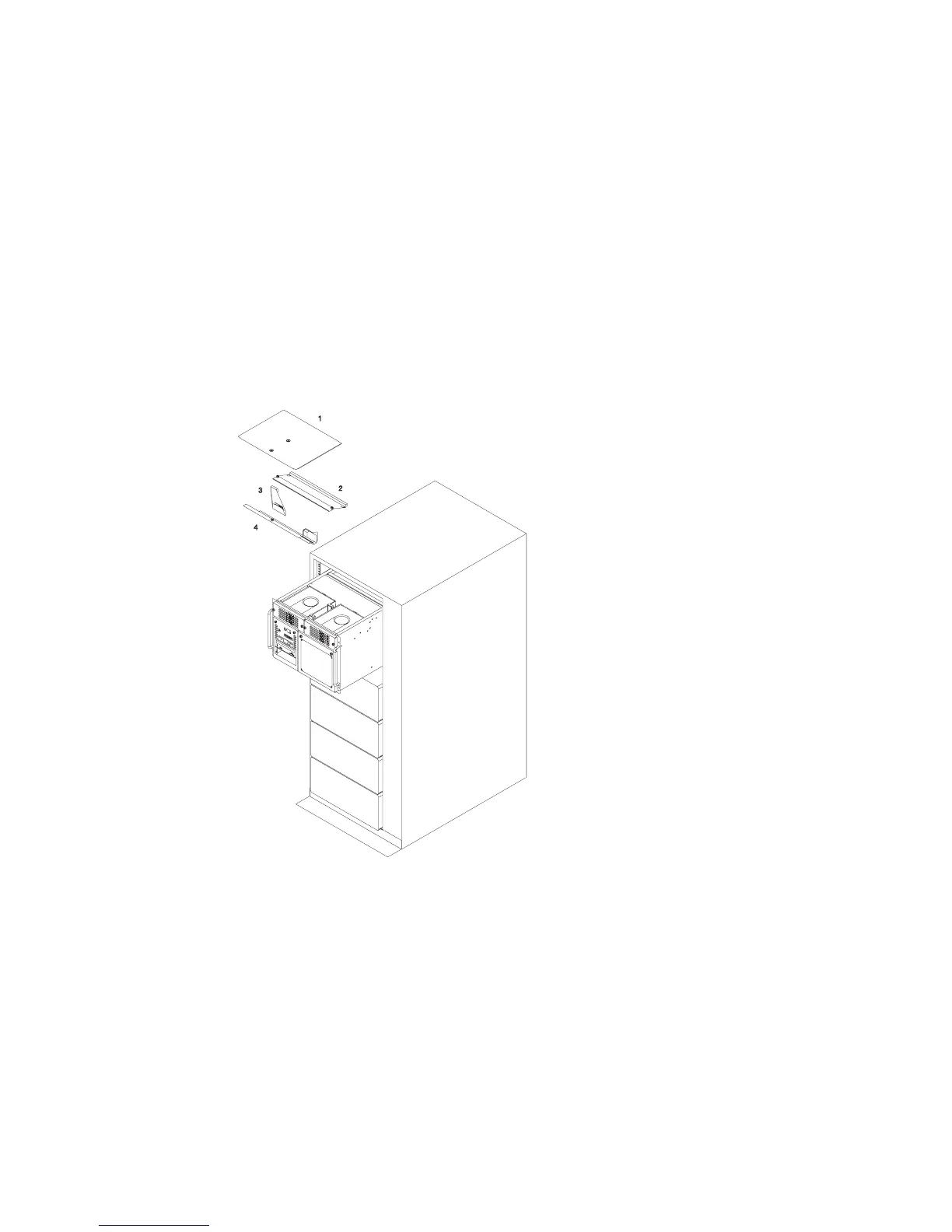

1 Top Cover (Step 8) 2 Top Air Baffle (Step 9)
3 I/O Air Duct (Step 10) 4 Bottom Air Baffle (Step 11)
