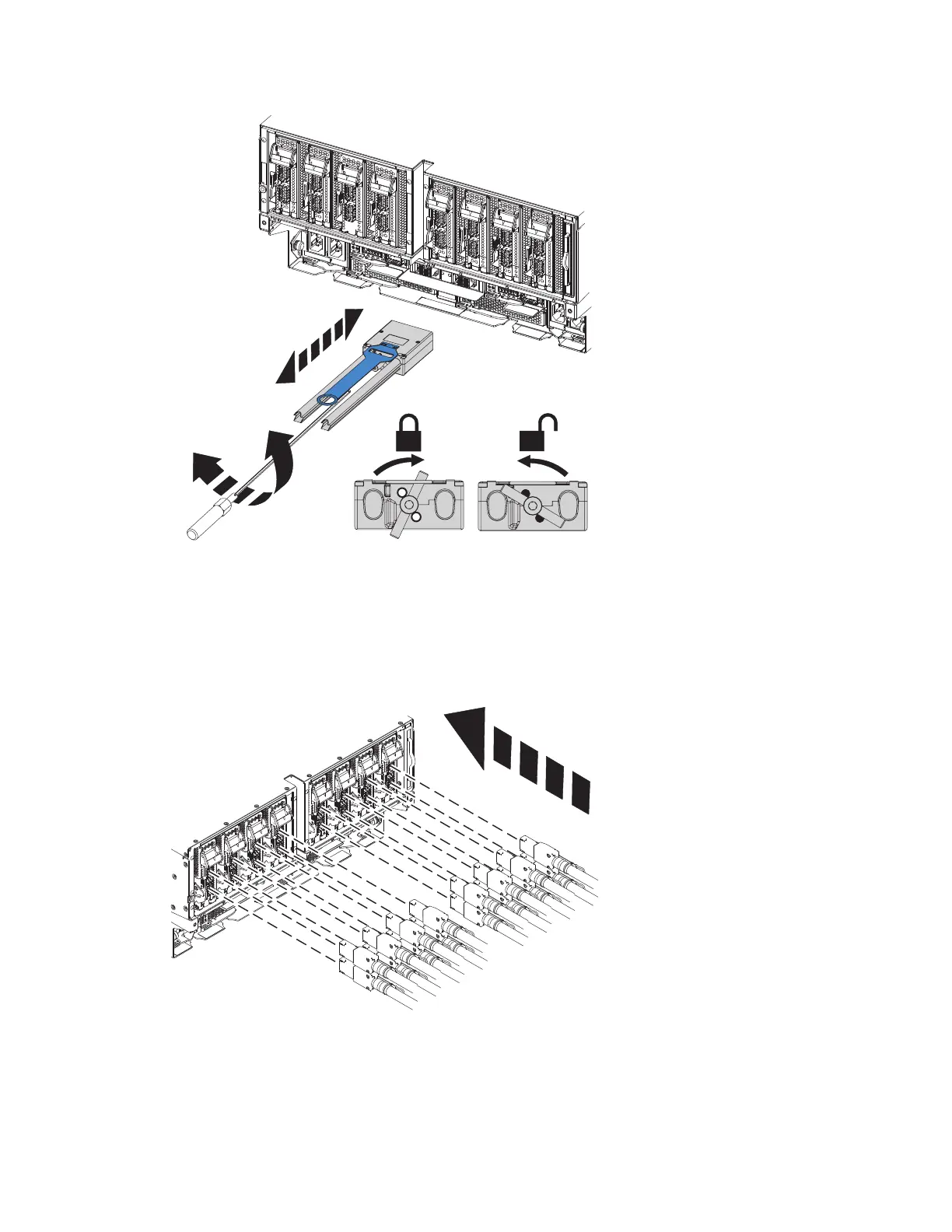

18. Install PCI cables
a. Install the PCI cables into the same location from which they were removed.
b. Plug the PCI cables into the cards to which they were originally connected.
19. Move cable management arm down
a. Pull out the retention pins (B) and rotate the cable management arm down on the pivot point (A)
from the position (1) to (2). The pins will automatically retract into the locking position when the
Install SCM 43
