Installing a USB embedded hypervisor flash device
To install a hypervisor flash device, complete the following steps:
1. Read the safety information that begins on page v and “Installation guidelines”
on page 26.
2. Turn off the server and peripheral devices and disconnect the power cords.
3. Remove the cover (see “Removing the cover” on page 28).
4. Grasp the front and rear of the riser-card assembly and lift it out of the PCI
riser-card slot on the system board.
5. Unlock the retention latch on the USB connector by squeezing the two retention
clips toward each other.
6. Lift to open the retention latch.

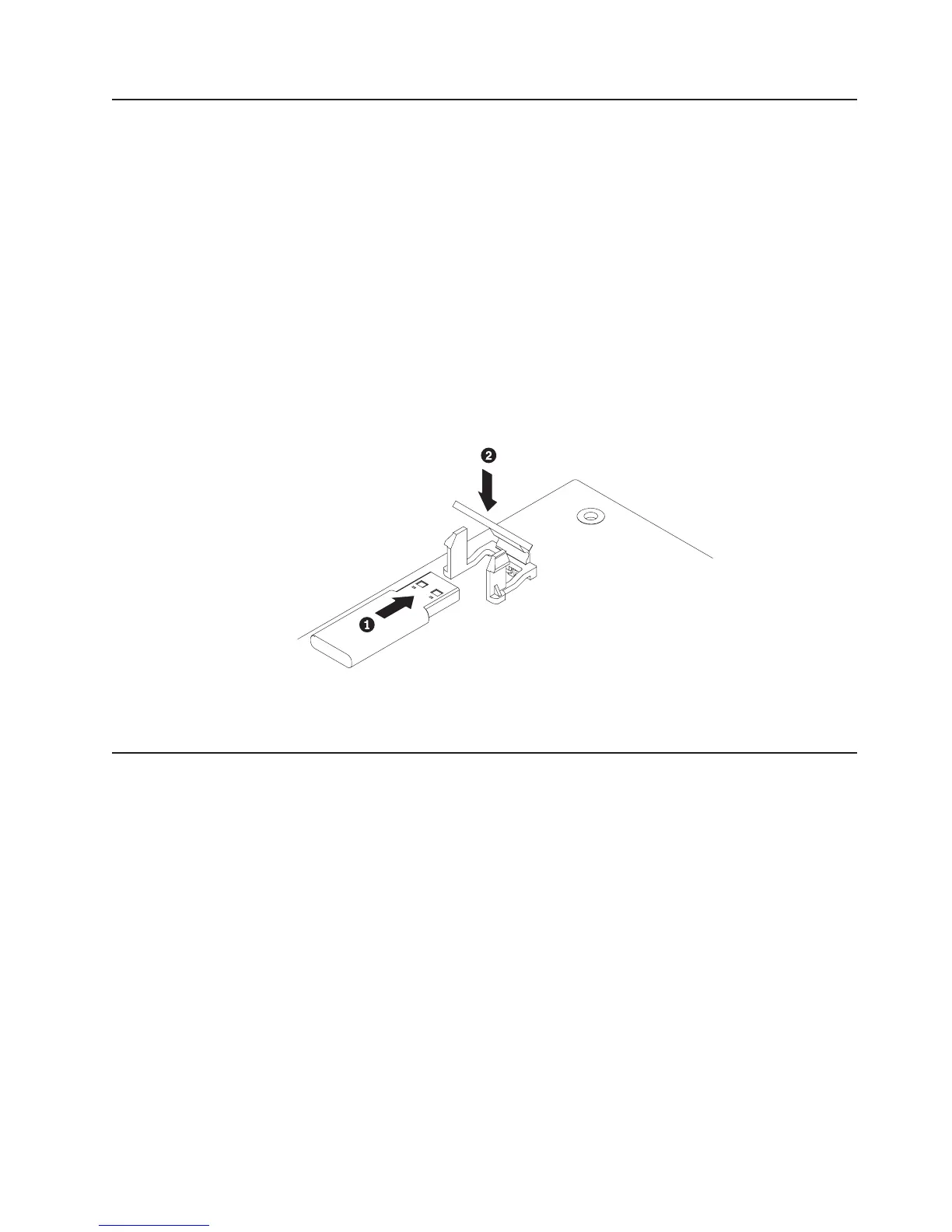

7. Align the flash device with the USB connector on the system board and push it
into the USB connector until it is firmly seated.
8. Press down on the retention latch to lock the flash device into the USB
connector.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation.”
Completing the installation
To complete the installation, complete the following steps:
1. If you removed any air baffles, reinstall them (see “Replacing the DIMM air
baffle”).
2. If you removed the server cover, replace it (see “Replacing the cover” on page
54).
3. Install the server in the rack cabinet (see the Rack Installation Instructions that
come with the server for instructions).
4. Reconnect the cables and power cords (see “Connecting the cables” on page
55).
5. Update the server configuration (see “Updating the server configuration” on
page 55).
6. Slide the server back into the rack, if necessary.
Replacing the DIMM air baffle
To install the DIMM air baffle, complete the following steps:
1. Read the safety information that begins on page v and “Installation guidelines”
on page 26.
Chapter 2. Installing optional devices 53
