IBM System x3300 M4 19
If ServeRAID M5110 is selected with a battery kit or flash upgrade, the battery or flash power module is
installed remotely from the adapter in a battery holder that is mounted inside the server case as shown in
the following figure.

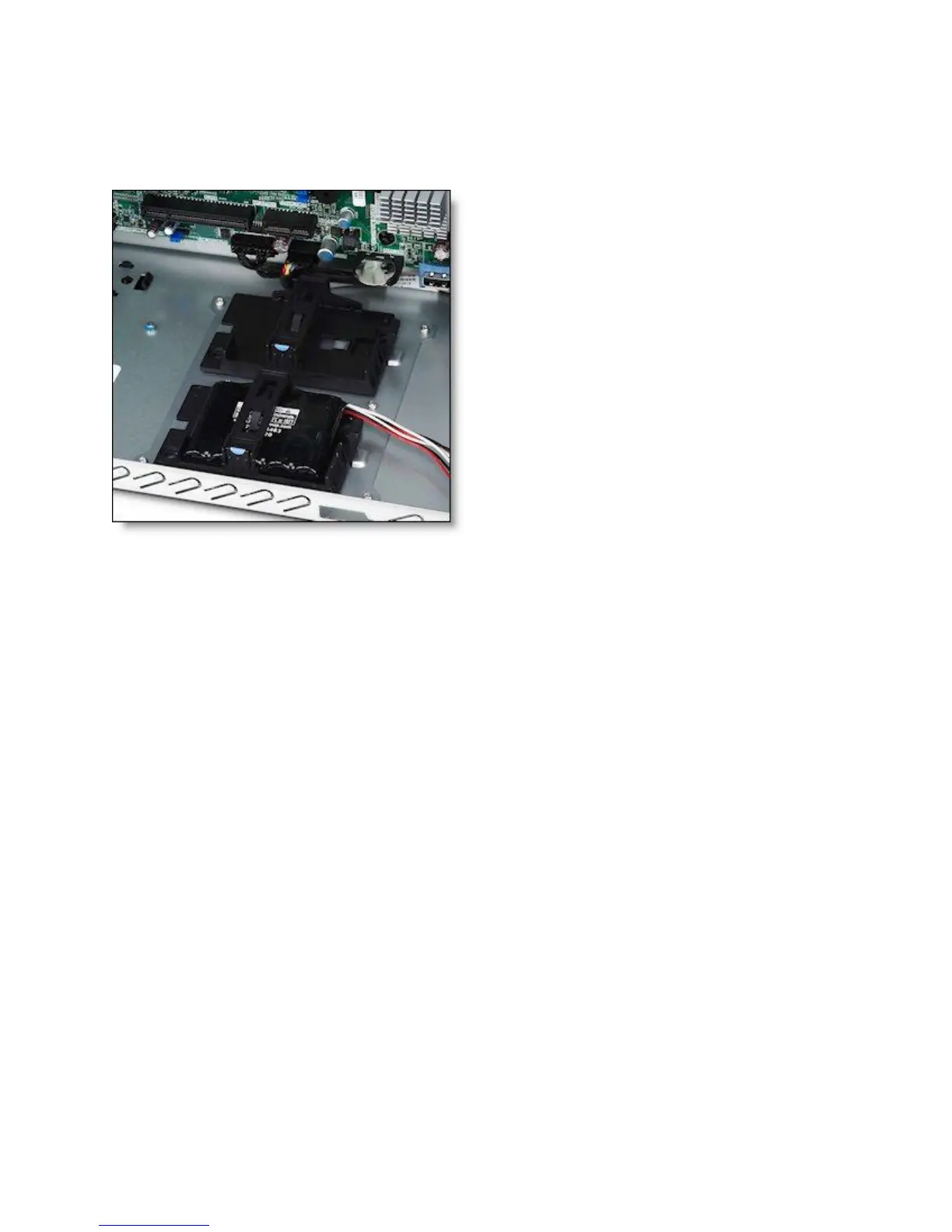

Figure 7. ServeRAID battery or flash power module installed in the battery holder
For more information, see the list of IBM Redbooks
®
Product Guides in the RAID adapters category:
http://www.redbooks.ibm.com/portals/systemx?Open&page=pg&cat=raid
