he optional IBM SAS HBA controller offers RAID-0/1/1E support for external SAS/SATA HDDs.
The optional ServeRAID-MR10i is a full-height/half-length PCI-E x8 card that offers high
performance (and optionally 256MB of write-back ECC cache memory with battery backup) for
internal SAS/SATA storage, as well as external SAS/SATA storage. The adapter supports five
RAID levels on the x3350: 0 (striping), 1 (mirroring), 10 (mirroring and striping), 5 (striping with
parity), and 6 (striping with dual parity). (While the controller also supports RAID 50 and 60, there
are insufficient drive bays in the x3350 to utilize those RAID levels.)
The optional ServeRAID-MR10M PCI-E x8 controller offers high performance and 256MB of
cache memory with battery backup for internal and external SAS storage capacity. The adapter
supports seven RAID levels: 0, 1, 10, 5, 50 (striping/mirroring with parity), 6 (double parity) and
60 (double parity with mirroring).
External Storage — The IBM TotalStorage DS3000, DS4000, DS6000, and DS8000 series, as
well as the System Storage DS4000, N3000, N5000, and N7000 series, comprise a powerful
and broad shared storage family with integrated management software designed to meet
midrange and enterprise needs. For lower-end needs, IBM offers the TotalStorage DS400
storage enclosure.
External SAN, iSCSI, and direct-attach storage is available using one of several IBM System
Storage and TotalStorage host bus adapters. Additionally, external LAN-attached tape storage is
available.
x

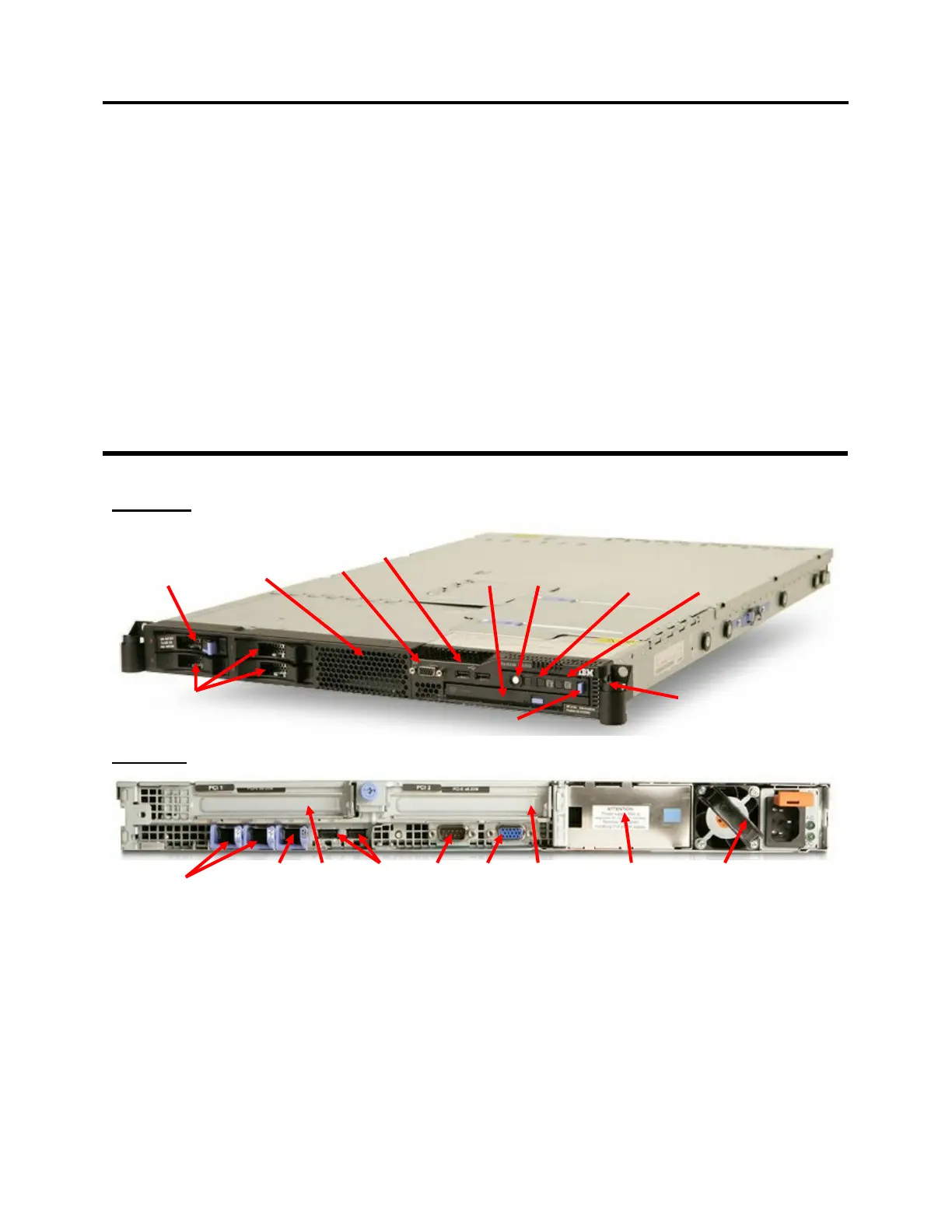

3350 Images
Front View
R
ear View
Hot-Swap
2
.5-inch SAS
HDD
Status
L
EDs
Pop-Out Light Path
Diagnostics Panel
CD-RW/DVD
Combo Drive
Video Port
Light Path Diagnostics Panel Eject Button
Power
Bu
tton
USB 2.0 Ports
Hexagonal
Ve
ntilation
Holes
2.5-inch
Drive Bay
Fillers
Rack Release Button
Slot 2
H
ot-Swap Power
Supply and Fan
Video
Port
Serial
Port
USB
Ports
Fast Ethernet
Port for BMC
Gigabit
Ethernet Ports
Slot 1
Empty Redundant
Po
wer Supply Bay
