Locating connectors on the rear of the computer

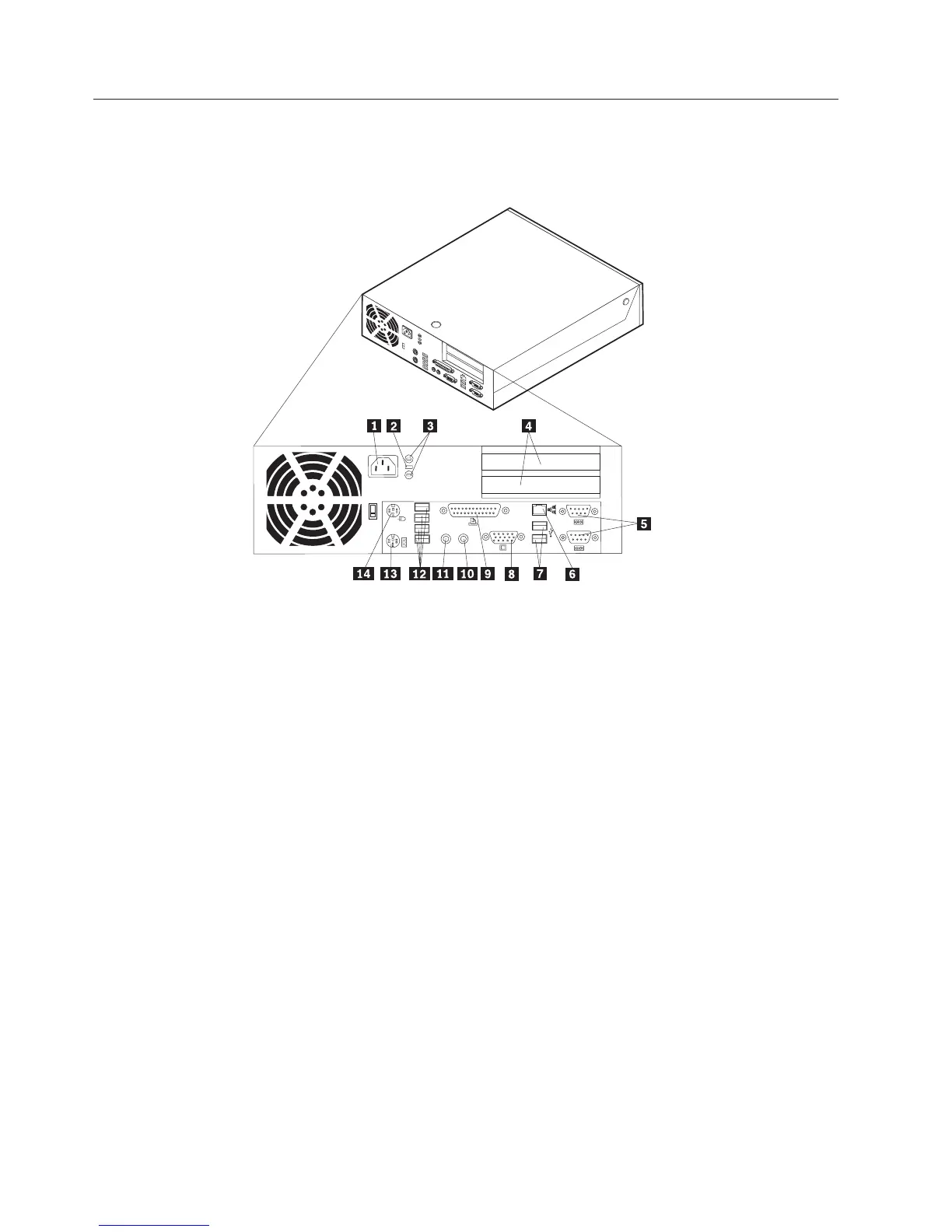

The following illustration shows locations of connectors on the rear of the
computer.
1 Power cord connector 8 VGA monitor connector
2 Cable lock latch 9 Parallel connector
3 Rope clip (U-bolt) holes 10 Audio line-in connector
4 PCI adapter slots 11 Audio line-out connector
5 Serial connectors (2) 12 USB connectors (4)
6 Ethernet connector 13 PS/2 keyboard connector
7 USB connectors (2) 14 PS/2 mouse connector
Note: Some connectors on the rear of the computer are color-coded to help
determine where to connect the cables.
v Mouse - green
v Keyboard - purple
v Monitor - dark blue
v Microphone - pink
v Audio line-out - lime green
24 Hardware Maintenance Manual
