IBM ThinkCentre 8127

Locating components

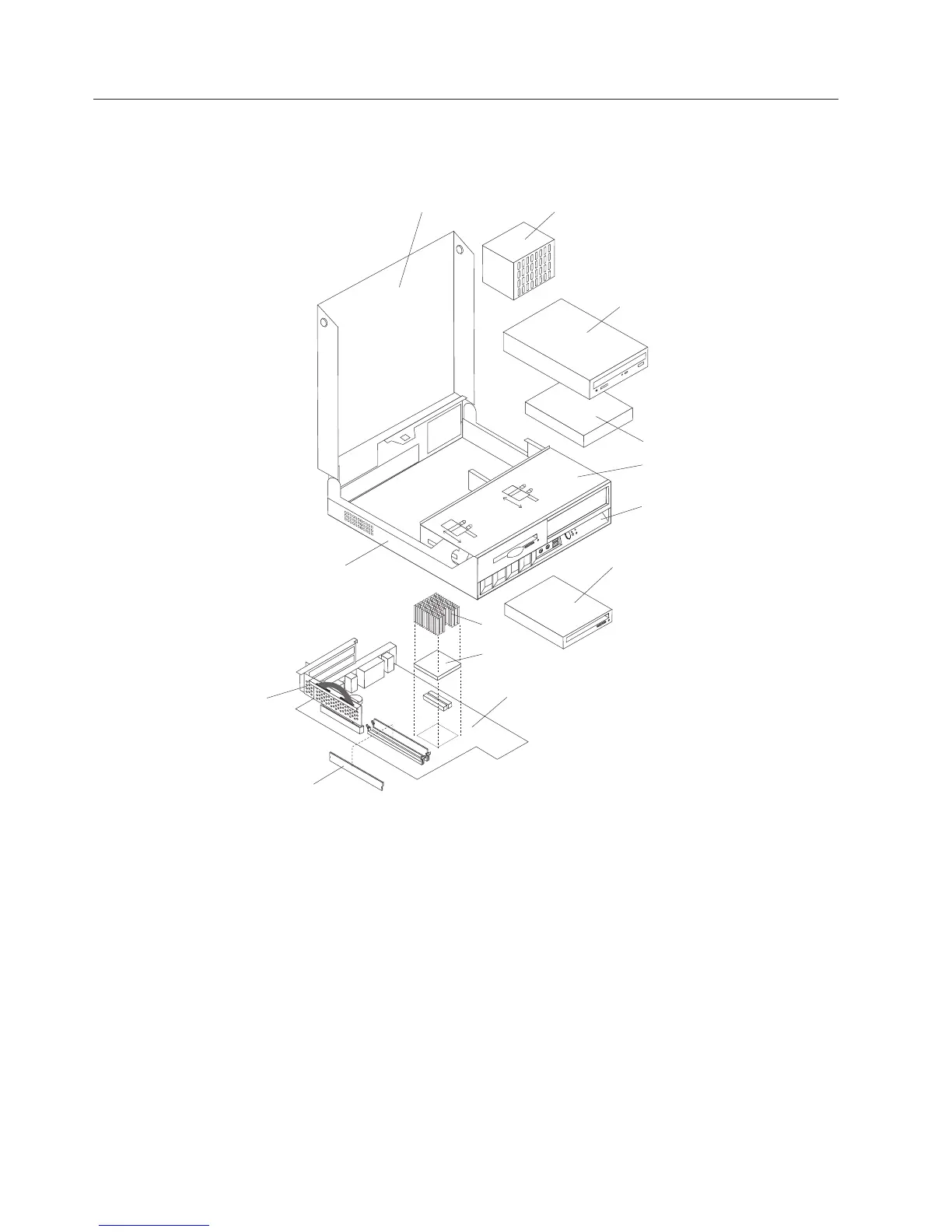

The following illustration will help you locate the various components in the
computer.
1
6
7
8
9
5
10
11
12
13
4
3
2
1 Cover 8 Heat sink
2 Power supply 9 Microprocessor
3 Optical drive 10 System board
4 Hard disk drive 11 Memory module
5 Rotating drive bay assembly 12 PCI riser assembly
6 Front plastic bezel 13 Chassis
7 Diskette drive
