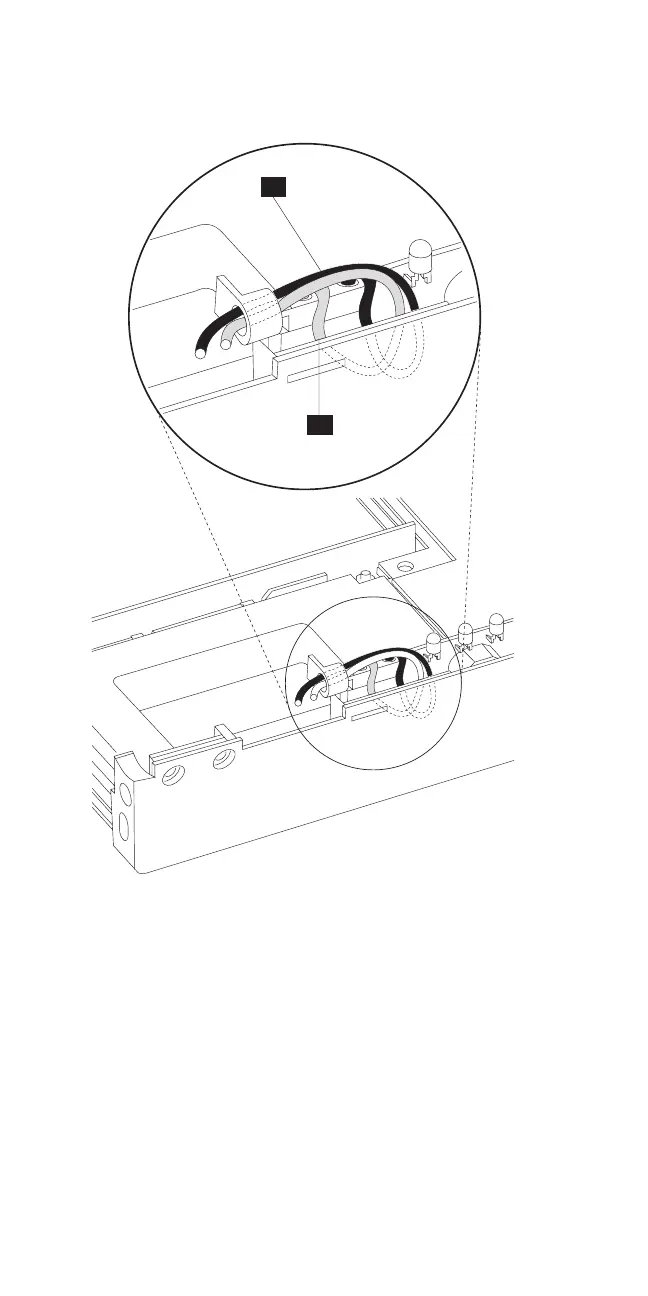

Backlight cable routing from the rear, shown without
the computer lid.
▌1▐ Brown wire.
▌2▐ Yellow wire.
4. Route the yellow wire in the same manner as the
brown wire. Position the yellow wire beside the
brown wire where it runs over the connector on the
side toward the back of the computer. Do not allow
the wires to cross.
5. Be careful to keep the cable in the correct position as
you complete the assembly of the computer.
ThinkPad 701C/701CS (2630)
177
