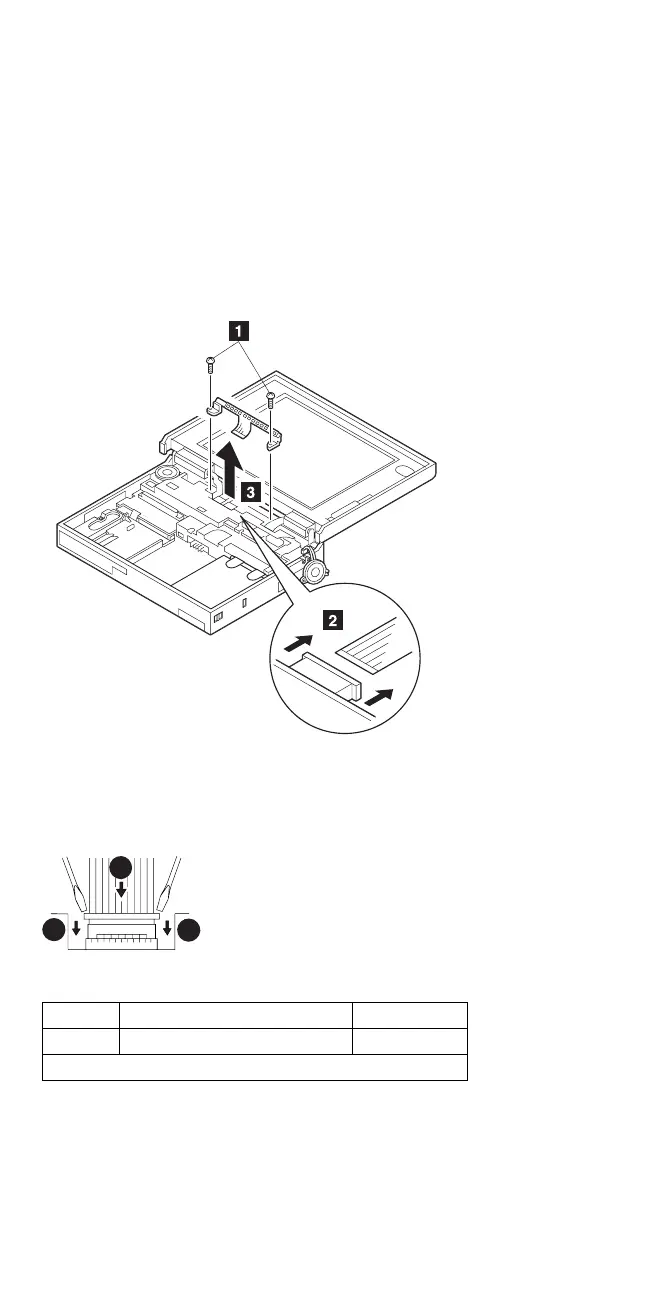

2090 Status Indicator
CD-ROM Drive (2030)
Battery Pack (2020)
Keyboard Unit (2080)
Warning: Do not pull the status indicator cable. The
cable will be damaged if the status indicator is
disconnected without releasing the latch in step ▌2▐.
Note: When replacing the indicator, insert the flexible
cable straight into the connector until the head of the cable
stops. Slide both ends of the latches at the same time to
make sure that the cable is correctly inserted.
1
2
2
Use the following table for reference when replacing parts.
Step Location (Quantity) Length
▌1▐ LED Stand off (2) 14 mm
Note: Make sure you use the correct screw.
362 IBM Mobile Systems HMM
