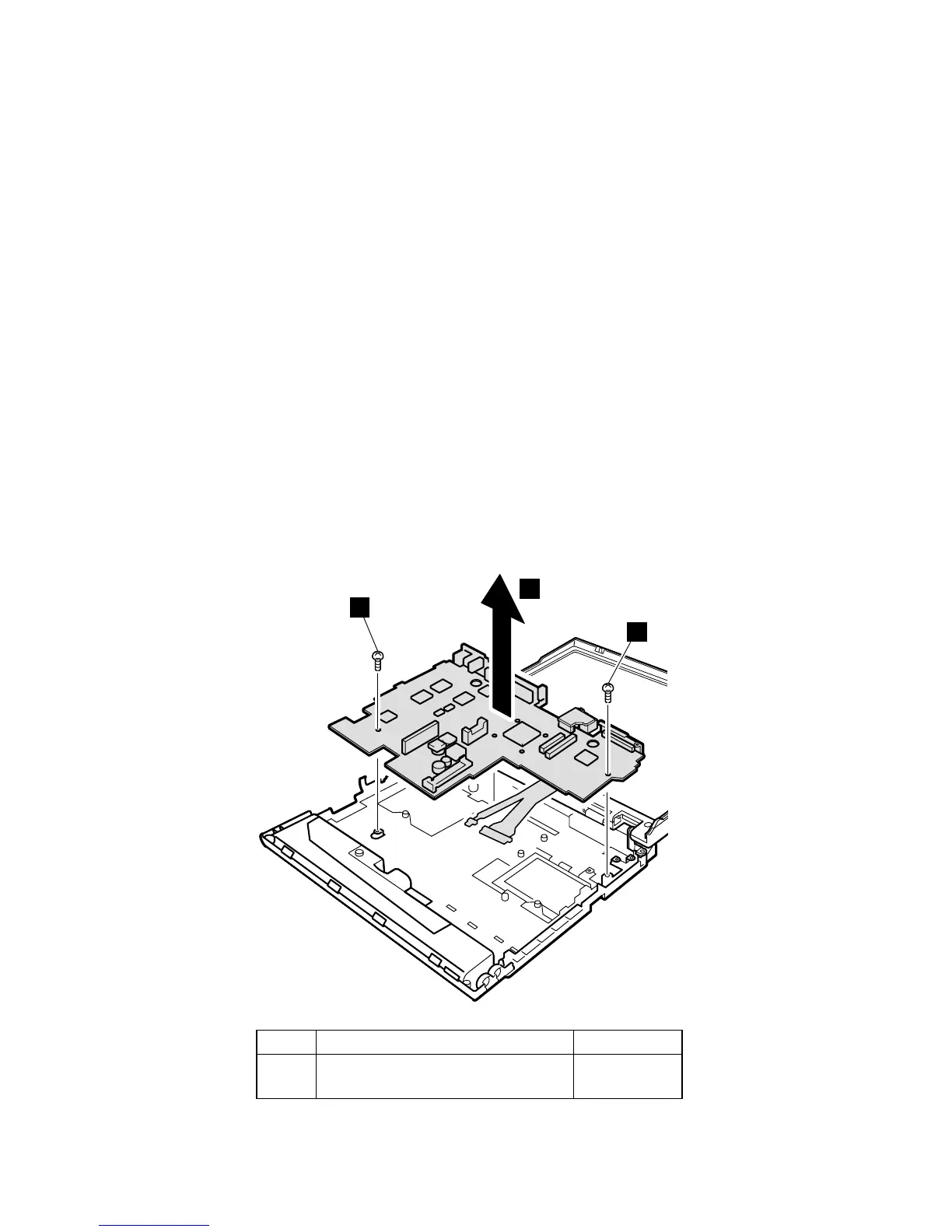

1200 System board and RJ45/11
connector assembly
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 58
v “1020 DIMM” on page 59
v “1030 Mini PCI adapter” on page 61
v “1040 Backup battery” on page 63
v “1050 Hard-disk drive or RF ID adapter” on page 64
v “1060 Ultrabay 2000 device” on page 66
v “1070 Dummy card” on page 68
v “1080 Keyboard” on page 69
v “1090 Keyboard CRU insulator” on page 72
v “1100 Hinge cover and clear sheet icon” on page 73
v “1110 Keyboard bezel and speaker” on page 74
v “1120 Speaker cable” on page 77
v “1130 Wireless PC Card and sub card” on page 78
v “1140 PC Card slot assembly” on page 87
v “1150 Fan assembly” on page 89
v “1160 Diskette drive” on page 91
v “1170 Upper shield” on page 93
v “1180 TV card” on page 94
v “1190 CPU socket and CPU” on page 95
1
1
2
Step Screw (quantity) Torque
1 M2.5 × 4.8 mm, nylon-coated (2) 0.392 Nm
(4 kgfcm)
(continued)
Removing and replacing a FRU
96 ThinkPad A22m wireless models
