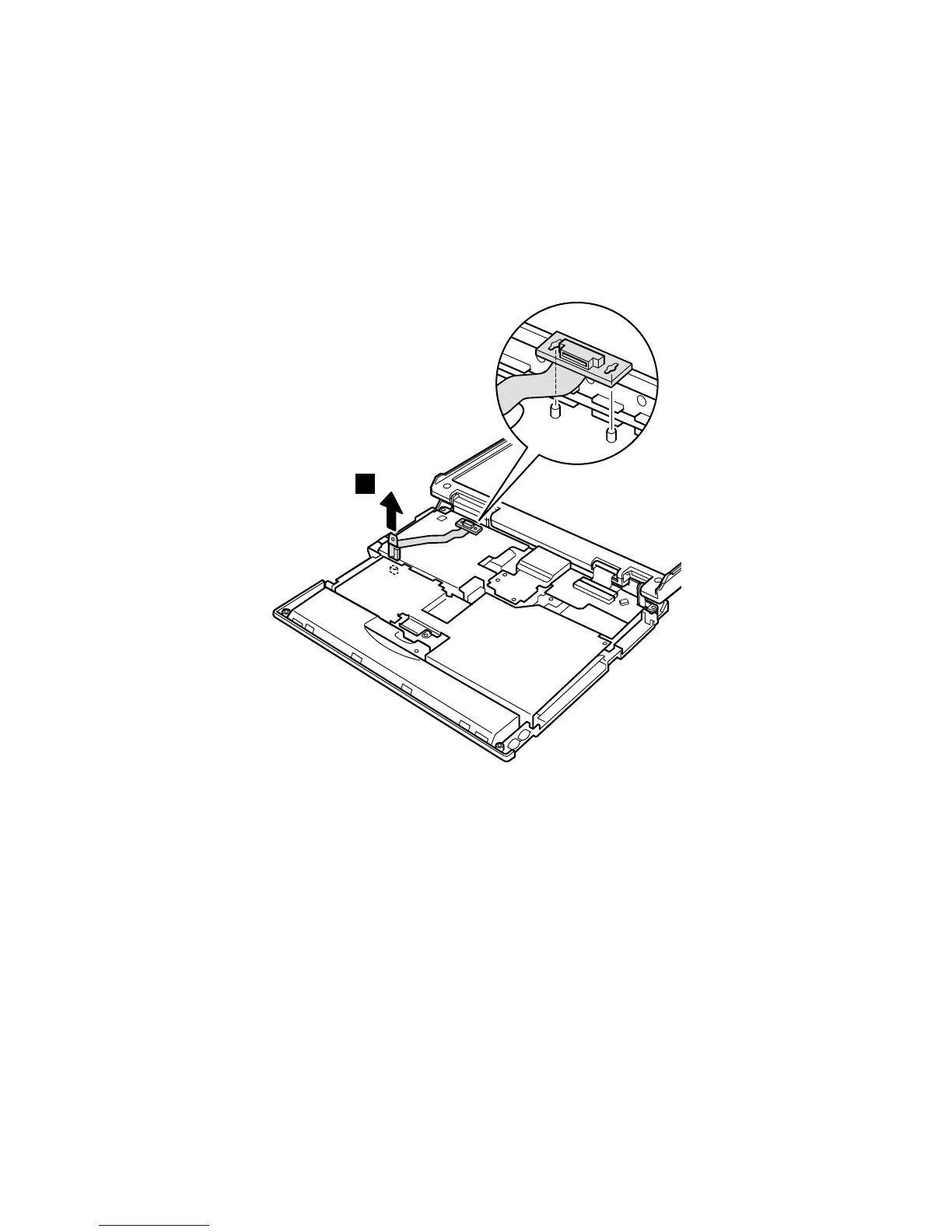

1120 Speaker cable
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 58
v “1050 Hard-disk drive or RF ID adapter” on page 64
v “1060 Ultrabay 2000 device” on page 66
v “1080 Keyboard” on page 69
v “1090 Keyboard CRU insulator” on page 72
v “1100 Hinge cover and clear sheet icon” on page 73
v “1110 Keyboard bezel and speaker” on page 74
1
When installing: Make sure that you fasten the connector
firmly.
Removing and replacing a FRU
ThinkPad A22m wireless models 77
