When
installing:
After
fixing
the
LCD
assembly
onto
the
base
cover
with
tightening
the
screws,
do
the
following
procedure.

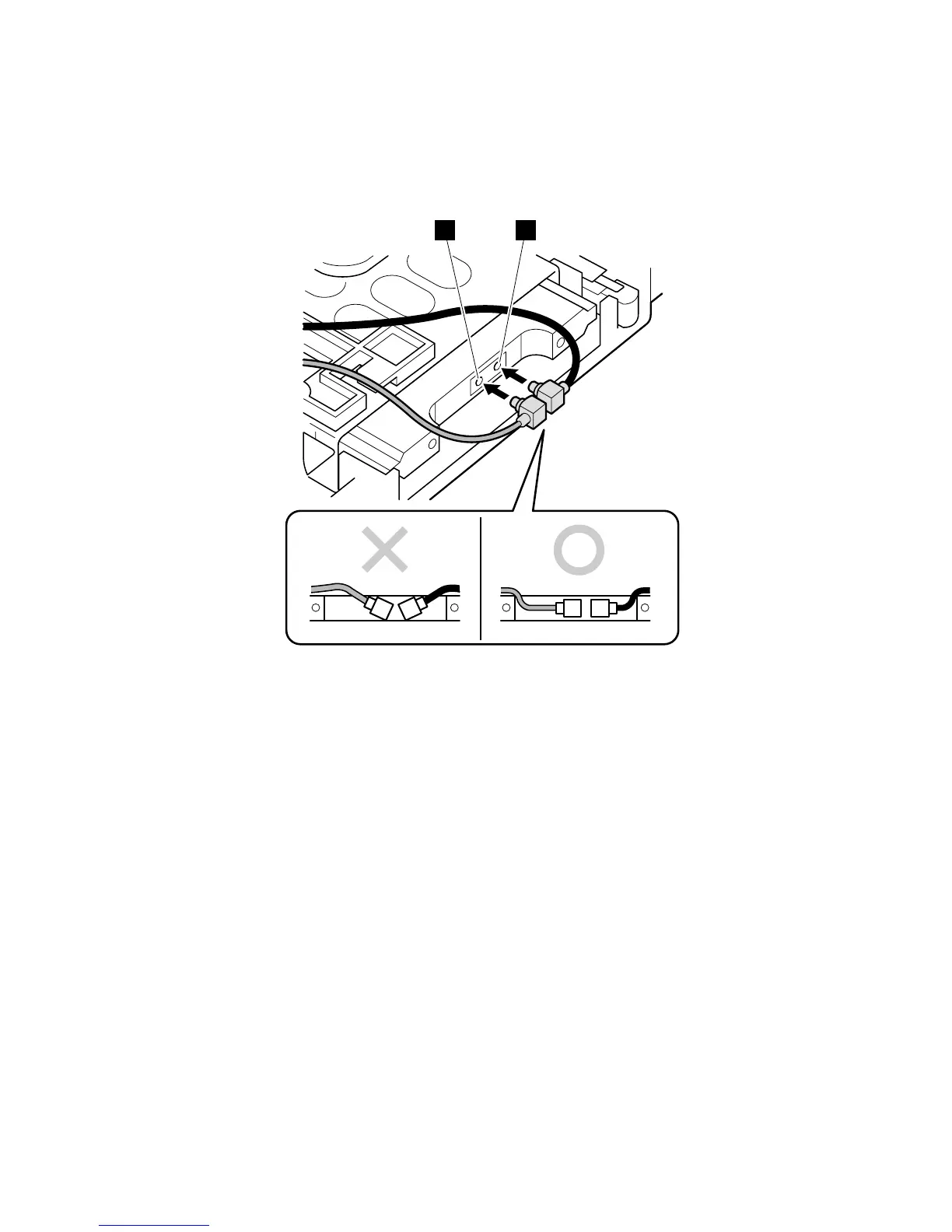

1.
Plug
the
black
antenna
cable
into
jack
a
(AUX)
of
the
wireless
PC
Card,
and
the
gray
antenna
cable
into
jack
b
(MAIN).
a
b
(continued)
Removing
and
replacing
a
FRU
102
ThinkPad
A22m
wireless
models
105
107
