IBM ThinkPad A22m 2628 User Manual
4
of 1
of 1 rating
140 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Make
sure
that
the
system
lock
key
A
is
set
to
the
Unlock
position.

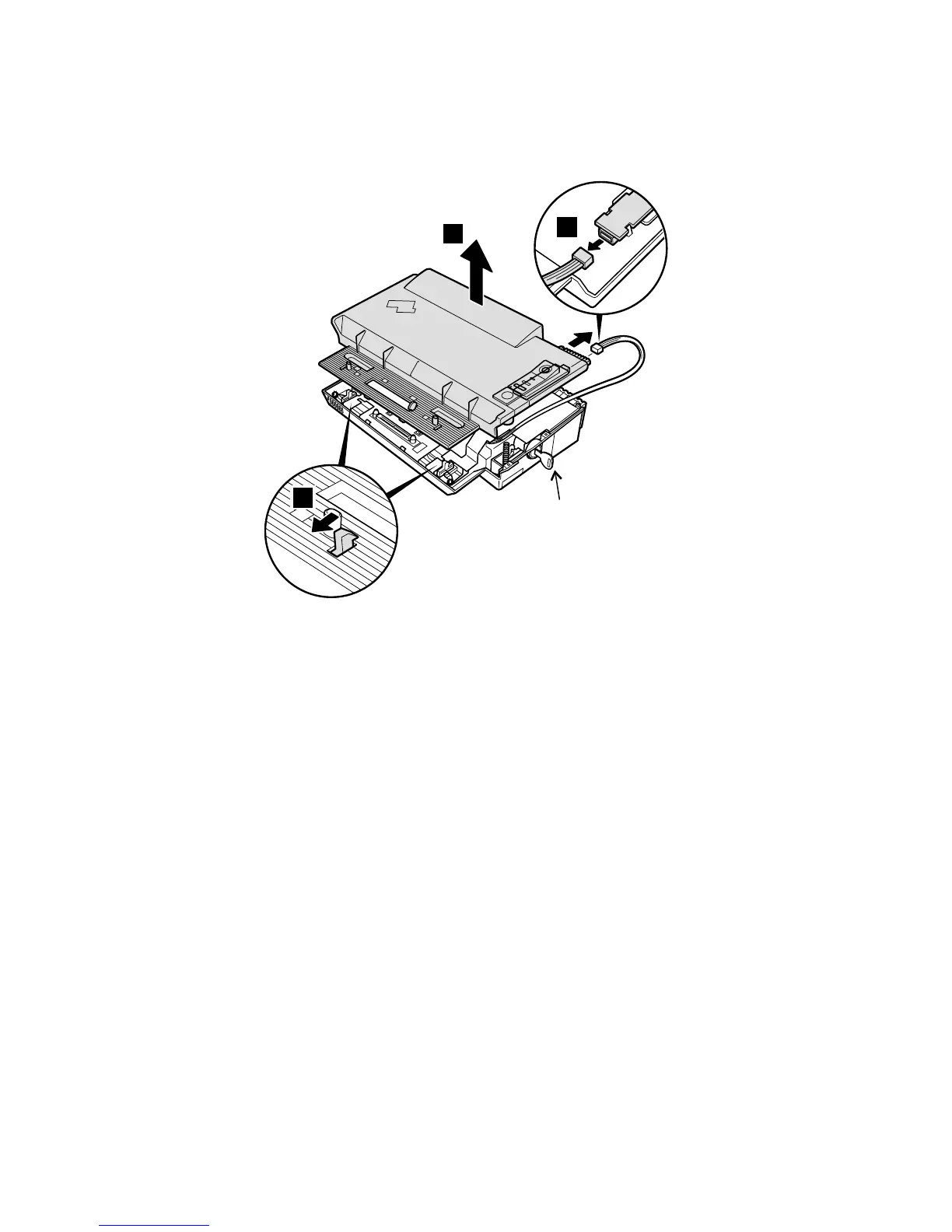

Release
the
front
latches
in
step
3
,
and
then
remove
the
top
cover
4
.
For
step
5
,
see
the
inside
view
,
shown
in
the
circle.
5
4
3
A
Removing
and
replacing
a
FRU
11
6
ThinkPad
A22m
wireless
models
119
121
Table of Contents
Table of Contents
3
Introduction
5
Important Service Information
5
Strategy for Replacing Frus
5
How to Use Error Messages
6
Diskette Compatibility Matrix
6
Safety Notices: Multilingual Translations
7
Safety Information
18
General Safety
18
Electrical Safety
19
Safety Inspection Guide
20
Handling Electrostatic Discharge-Sensitive Devices
21
Grounding Requirements
22
Laser Compliance Statement
22
General Descriptions
27
Read this First
27
What to Do First
27
Related Service Information
29
Service Web Site
29
Product Recovery Program
29
To Create a Recovery Repair Diskette
30
Passwords
31
Supervisor Password
32
How to Remove the Hard-Disk Password
33
Power Management
34
Hibernation Mode
35
Checkout Guide
37
Testing the Computer
37
Thinkpad A22M Wireless Models
38
Detecting System Information with PC-Doctor
39
Power System Checkout
39
Checking the Ac Adapter
40
Checking Operational Charging
40
Checking the Battery Pack
41
Checking the Backup Battery
41
Thinkpad A22M Wireless Models
43
Product Overview
45
Specifications
45
Status Indicators
46
FRU Tests
48
Fn Key Combinations
50
Symptom-To-FRU Index
51
Numeric Error Codes
51
Error Messages
54
Beep Symptoms
55
No Beep Symptoms
55
LCD-Related Symptoms
56
Intermittent Problems
56
Undetermined Problems
57
FRU Replacement Notices
58
Screw Notices
58
Retaining Serial Numbers
59
Restoring the Serial Number of the System Unit
59
Retaining the UUID
59
Removing and Replacing a FRU
61
1010 Battery Pack
62
1020 DIMM
63
1030 Mini PCI Adapter
65
1040 Backup Battery
67
1050 Hard-Disk Drive or RF ID Adapter
68
1060 Ultrabay 2000 Device
70
1070 Dummy Card
72
1080 Keyboard
73
1090 Keyboard CRU Insulator
76
1100 Hinge Cover and Clear Sheet Icon
77
1110 Keyboard Bezel and Speaker
78
1120 Speaker Cable
81
1130 Wireless PC Card and Sub Card
82
1140 PC Card Slot Assembly
91
1150 Fan Assembly
93
1160 Diskette Drive
95
1170 Upper Shield
97
1180 TV Card
98
1190 CPU Socket and CPU
99
1200 System Board and RJ45/11 Connector Assembly
100
2010 LCD Assembly
103
2020 Front Bezel
109
2030 Inverter Card
110
2040 LCD Panel
111
2050 Antenna Assembly
114
3010 Thinkpad Dock PCI Cover
116
3020 Thinkpad Dock Top Cover
118
Locations
123
Front View
123
Rear View
124
Bottom View
125
Parts List
126
Overall
126
LCD Frus
130
14.1-In. XGA TFT
130
Keyboard
131
Recovery Cds
132
For Windows 98
132
For Windows 2000
133
For Windows 2000/Windows NT
133
Miscellaneous Parts
134
Optional Frus
135
Common Parts List
137
Tools
137
Power Cords (System)
137
Power Cords (Docking Station)
138
Notices
139
Trademarks
139
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the IBM ThinkPad A22m 2628 and is the answer not in the manual?
Ask a question
