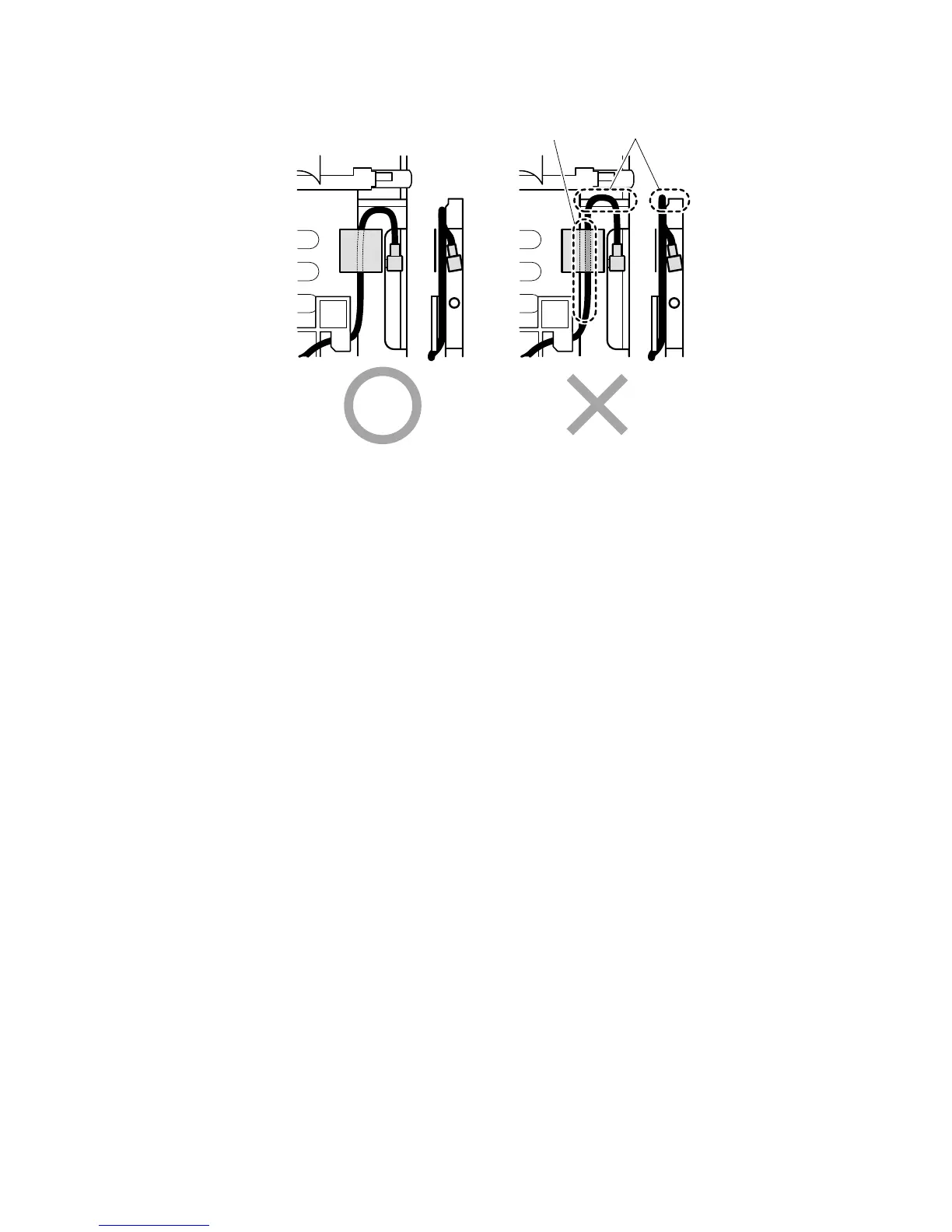

4. Secure the black cable with insulation tape as follows:
A
B
Notes:
a. Make sure that the cable does not jut out from the
edge of the wireless PC Card as shown in A in the
figure. Route the cable as shown in the left figure
above.
b. Route the cable along the edge of the PC Card slot
as shown in the left figure above. Do not secure
the cable separately from the edge of the PC Card
slot as shown in B in the figure.
Removing and replacing a FRU
ThinkPad A22m wireless models 85
