2
CAUTION:

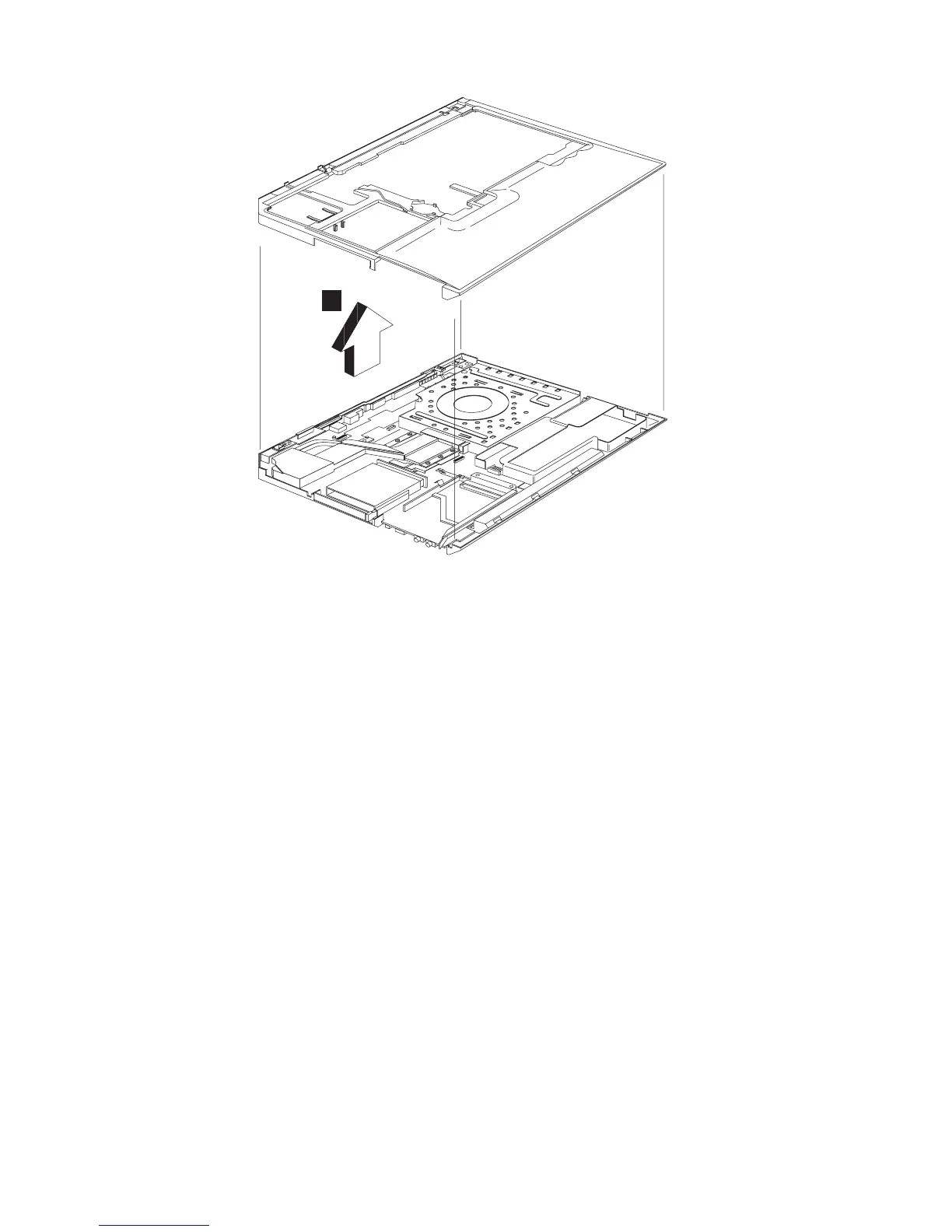

The keyboard bezel has several latches. When
removing the keyboard bezel from the bottom cover,
gently release these latches, then raise the side of the
keyboard bezel facing the palm rest to remove it. Be
careful not to break the latches.
1110 PCMCIA holder
v “1010 Battery assembly” on page 111
v “1020 Mini-PCI cover and Mini-PCI card” on page 111
v “1030 Memory cover and Memory card” on page 113
v “1060 Keyboard” on page 115
v “1080 Middle cover” on page 117
v “1090 LCD assembly” on page 119
v “1070 Backup battery” on page 117
v “1100 Keyboard bezel” on page 120
122 ThinkPad R30/R31 HMM
