IBM ThinkPad R30 Hardware Maintenance Manual

v Be careful not to scratch the LCD bezel when
removing the screw mylars.
v The LCD bezel has several latches. Release
these latches; then remove the LCD bezel. Be
careful not to break these latches.
v Gently push the two LCD latches outward to
remove the LCD bezel.
1220 LCD Inveter (13.3″)
v “1010 Battery assembly” on page 60
v “1020 Mini-PCI cover and Mini-PCI card” on page 60
v “1030 Memory cover and Memory card” on page 62
v “1060 Keyboard” on page 64
v “1080 Middle cover” on page 66
v “1090 LCD assembly” on page 68
v “1210 LCD bezel assembly (13.3″)” on page 80
1
Step Size (Quantity) Color Torque
1 M2 x L10(4) Black 2.5 kgf-cm

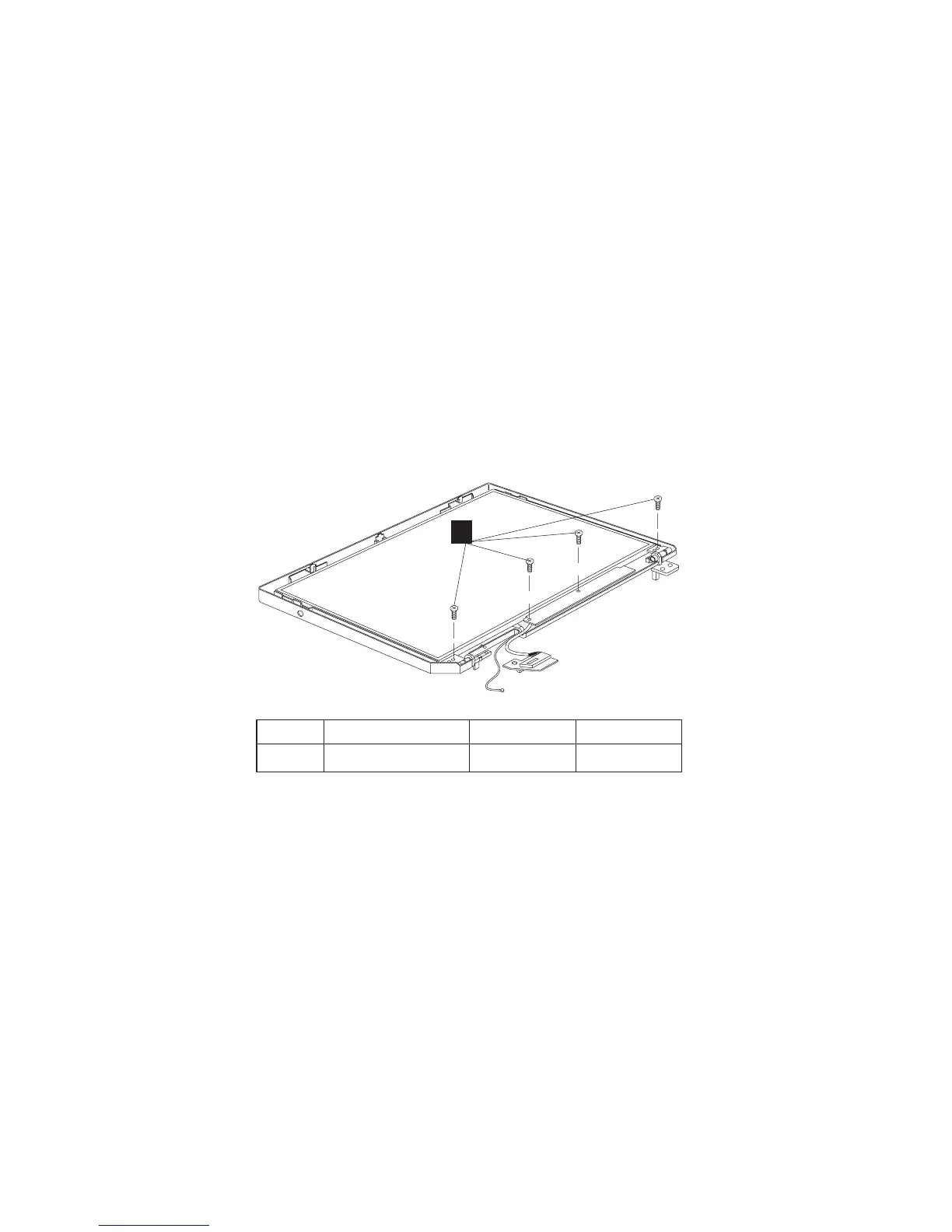

1230 LED board (13.3″)
v “1010 Battery assembly” on page 60
v “1020 Mini-PCI cover and Mini-PCI card” on page 60
v “1030 Memory cover and Memory card” on page 62
v “1060 Keyboard” on page 64
v “1080 Middle cover” on page 66
v “1090 LCD assembly” on page 68
v “1210 LCD bezel assembly (13.3″)” on page 80
82 ThinkPad R30/R31 HMM
