IBM System x3250 M4 4

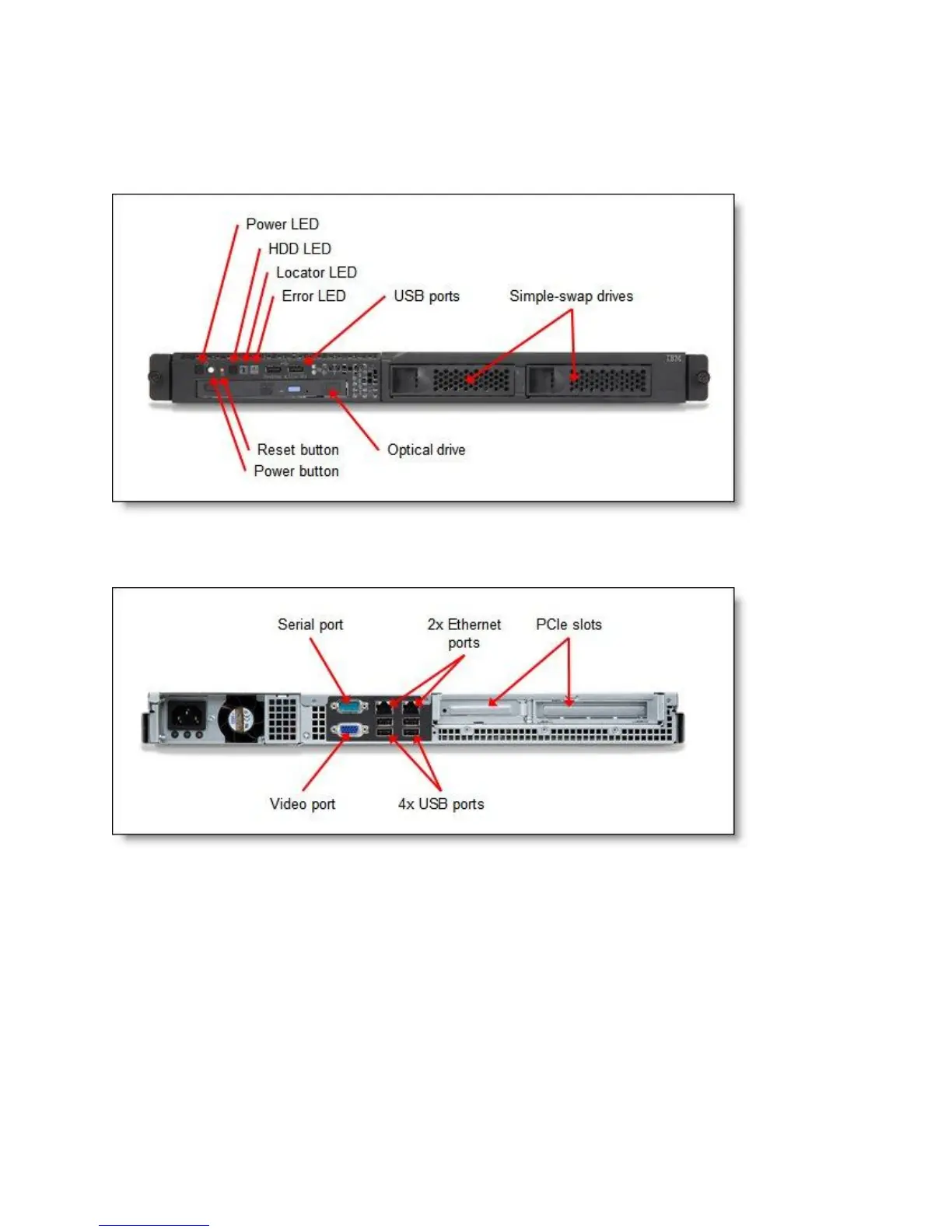

Locations of key components and connectors
Figure 2 shows the front of the server with two 3.5-inch simple-swap drives. Some models have up to four
2.5-inch hot-swap drive bays.
Figure 2. IBM System x3250 M4 rack server (front view)
Figure 3 shows the rear of the server.
Figure 3. IBM System x3250 M4 rack server (rear view)
