a. Press in on the rear of the sliding hinge mount until it extends beyond the
edge of the bezel and hold it in place.

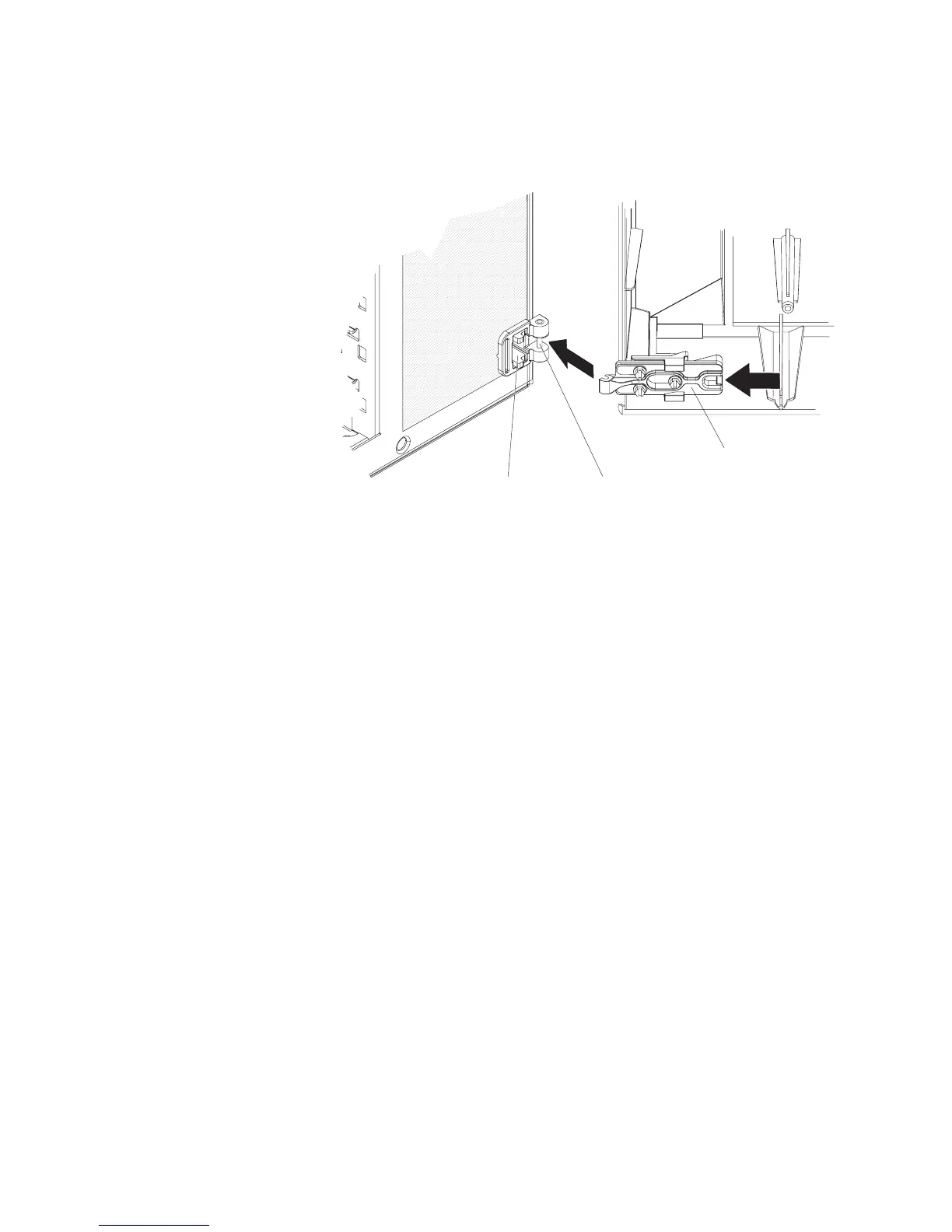

Sliding hinge mount
Hinge assembly Hinge pin
b. Align the sliding hinge mount with the hinge pin on the hinge assembly on
the chassis.
c. Press the sliding hinge mount against the hinge pin until the sliding hinge
mount snaps onto the hinge pin.
4.
Close the bezel.
Chapter 2. Installing options 69
