24
D
C
B
A
4321
D
C
B
A
4321
DATE
7/9/01
DESCRIPTION

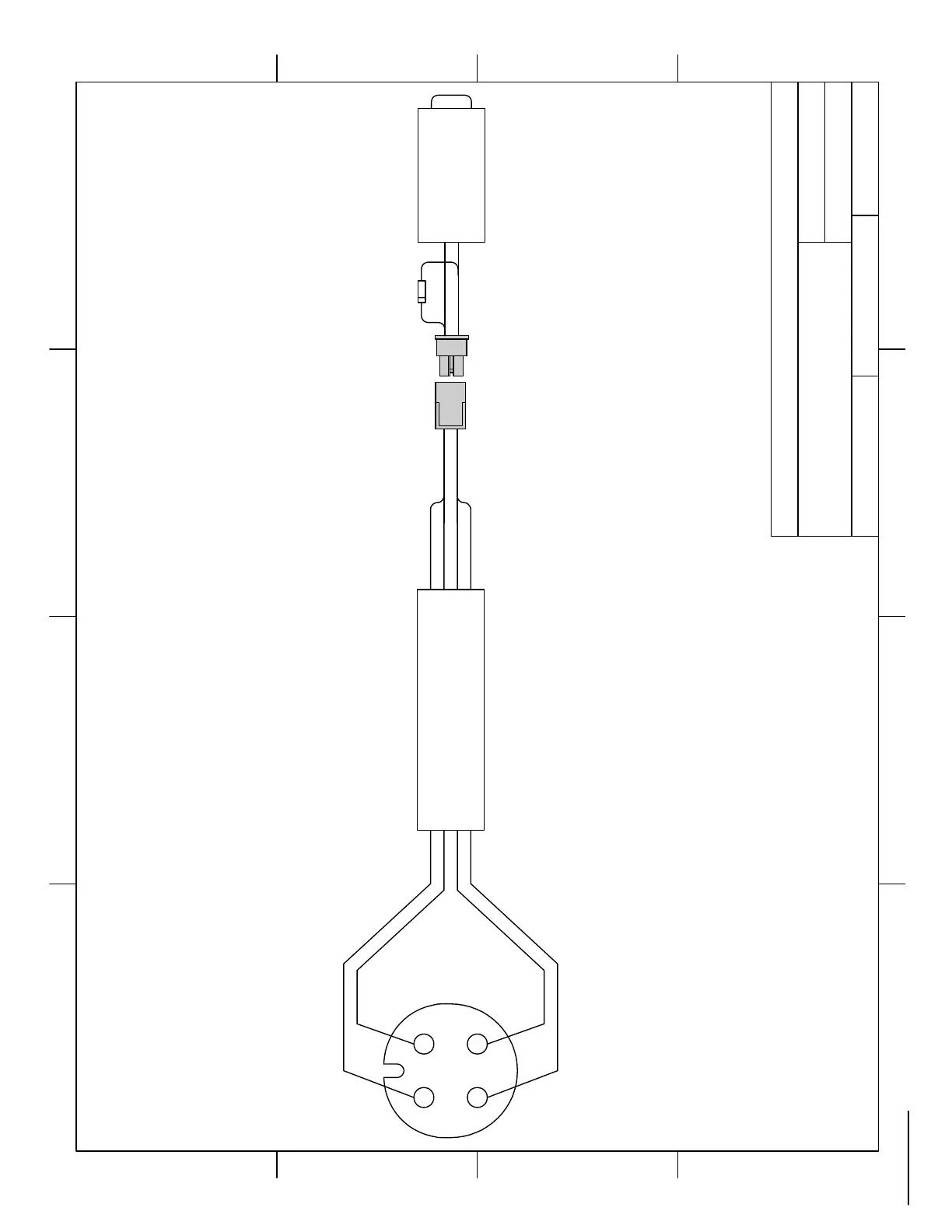

#CS2009X - CLAW SOLENOID ASSEMBLY
#CS2057X - SOLENOID CABLE HARNESS
DRAWN BY
MMARTIN
FILENAME
CS.VSD
PAGE
1 OF 16
REVISED
2/6/02
TITLE
SNACK ATTACKER
1
2
3
4
#8459 - CABLE
RETRACTABLE 4 COND, 7"
green
black
red
white
red
white
black
green
#2960 - PLUG (274-001)
VANCO CBC4MX
* STRIP JACKET BACK 1"
* STRIP BACK JACKET 1"
black
green
red
white
red + white
black + green
2" OF #2611 - SHRINK TUBE FIT 221-1/4"
AND
1 - #351 - CABLE TIE 50# BLK 15-1/2" T50
ON END OF RETRACTABLE CORD:
* NOTE PUT WIRES THROUGH SOLENOID
CAP BEFORE PLUGGING WIRES
WRAP END OF CORD JACKET WITH 1" OF
#8069 - SPIRAL WRAP 1/4" BLACK WERE
PLUG CLAMPS THE CORD
1
2
#8498 - 2 PIN MOLEX
MICRO-FIT PLUG
#8495 - MOLEX
MICRO-FIT MALE
TERMINAL
* CUT SOLENOID WIRES TO 1-1/2"
#2163 - DIODE 1N4004
COVER DIODE WITH 1" OF #8380 -
SHRINK TUBE 1/8" (CLEAR) FIT
#8497- 2 PIN MOLEX
MICRO-FIT RECEPTACLE
#8496 - MOLEX MICRO-
FIT FEMALE TERMINAL
1
2
#CS2009 - SOLENOID,
GUARDIAN
LT8X16-C-12
#CS2009X - SOLENOID
ASSEMBLY
#CS2057X - SOLENOID CABLE
HARNESS
To Next Page
