ICE i20NB / i20NBT / i20NBT-OB / i24BT

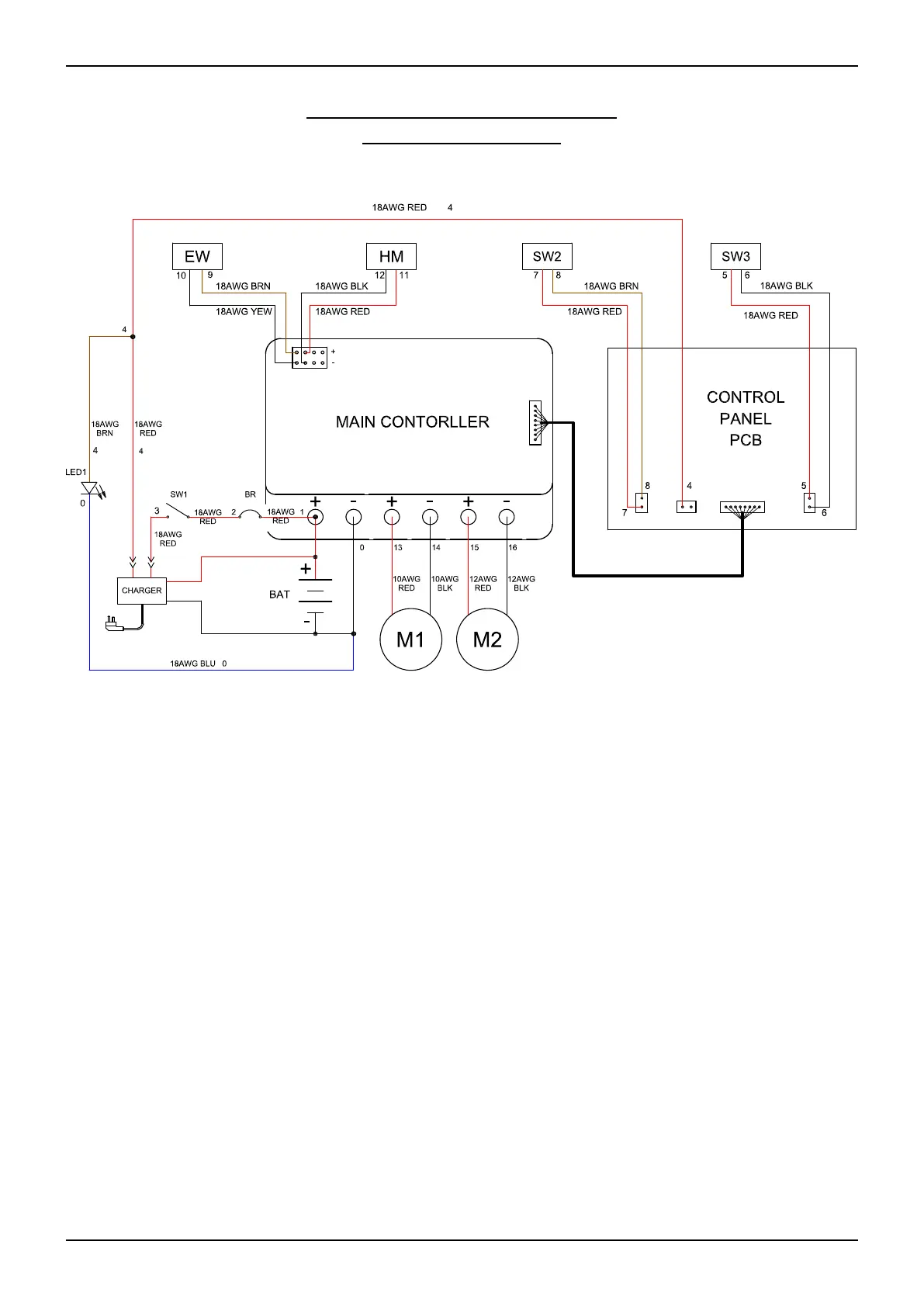

WIRING DIAGRAM

WIRING DIAGRAM FOR i20NB

(SN: 272 - 5288 )

BAT: 2-12V Batteries

CHARGER: On board battery charger

SW1: Key switch

BR: Circuit breaker, 5A

LED1: Running lights

EW: Solution solenoid valve switch

HM: Hour meter

SW2: Safe switch, Scrub head lifting

SW3: Control handle start bail switch

M1: Brush motor

M2: Vacuum motor
