ICE i20NB / i20NBT / i20NBT-OB / i24BT

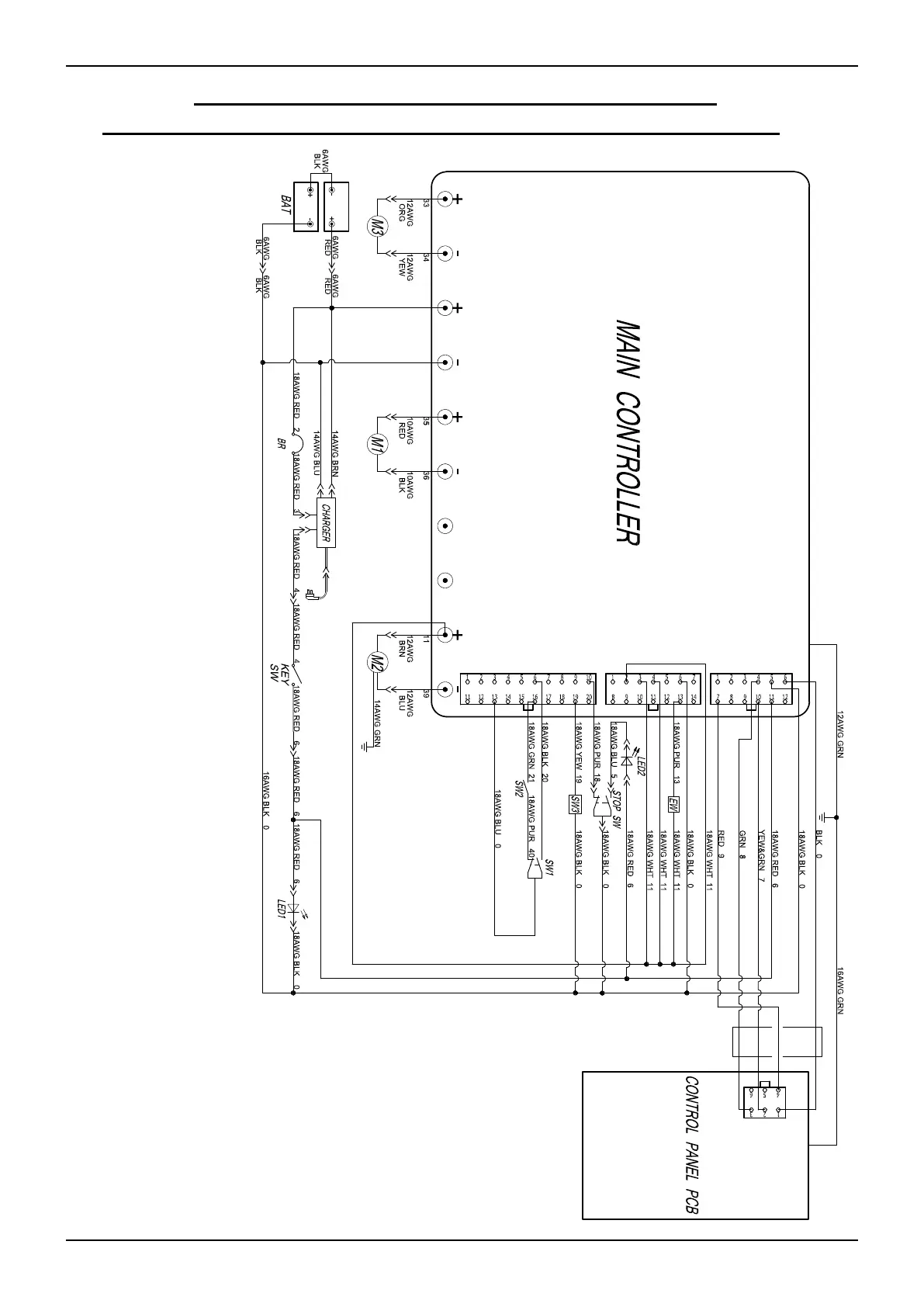

WIRING DIAGRAM
WIRING DIAGRAM（i20NBT, i20NBT-OB & i24BT)
(SN: i20NB - 529+, i20NBT - 604+, i20NBT-OB - 294+, i24BT - 321+ )
BAT: 2-12V Batteries
BR: Main controller circuit breaker
KEY SW: Main power key switch
LED1: Running light
CHARGER: On board battery charger
M3: Transaxle motor
M1: Brush motor
M2: Vacuum motor
To Next Page
