ICE i20NB / i20NBT / i20NBT-OB / i24BT

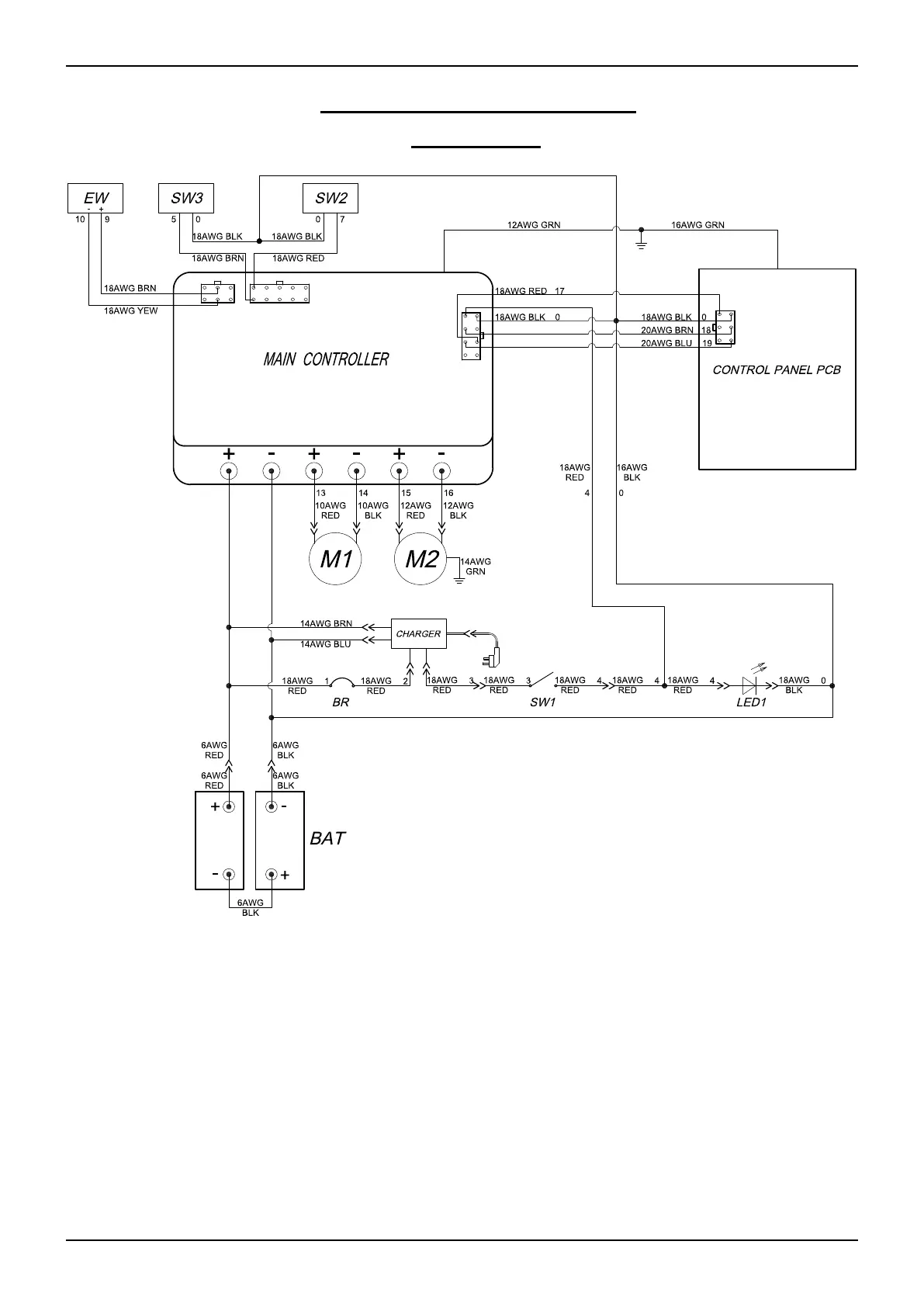

WIRING DIAGRAM
WIRING DIAGRAM FOR i20NB
SN:
529
8
BAT: 2-12V Batteries
BR: Main controller circuit breaker, 5A
SW1: Main power key switch
LED1: Running lights
CHARGER: On board battery charger
M1: Brush motor
M2: Vacuum motor
