Step 4:

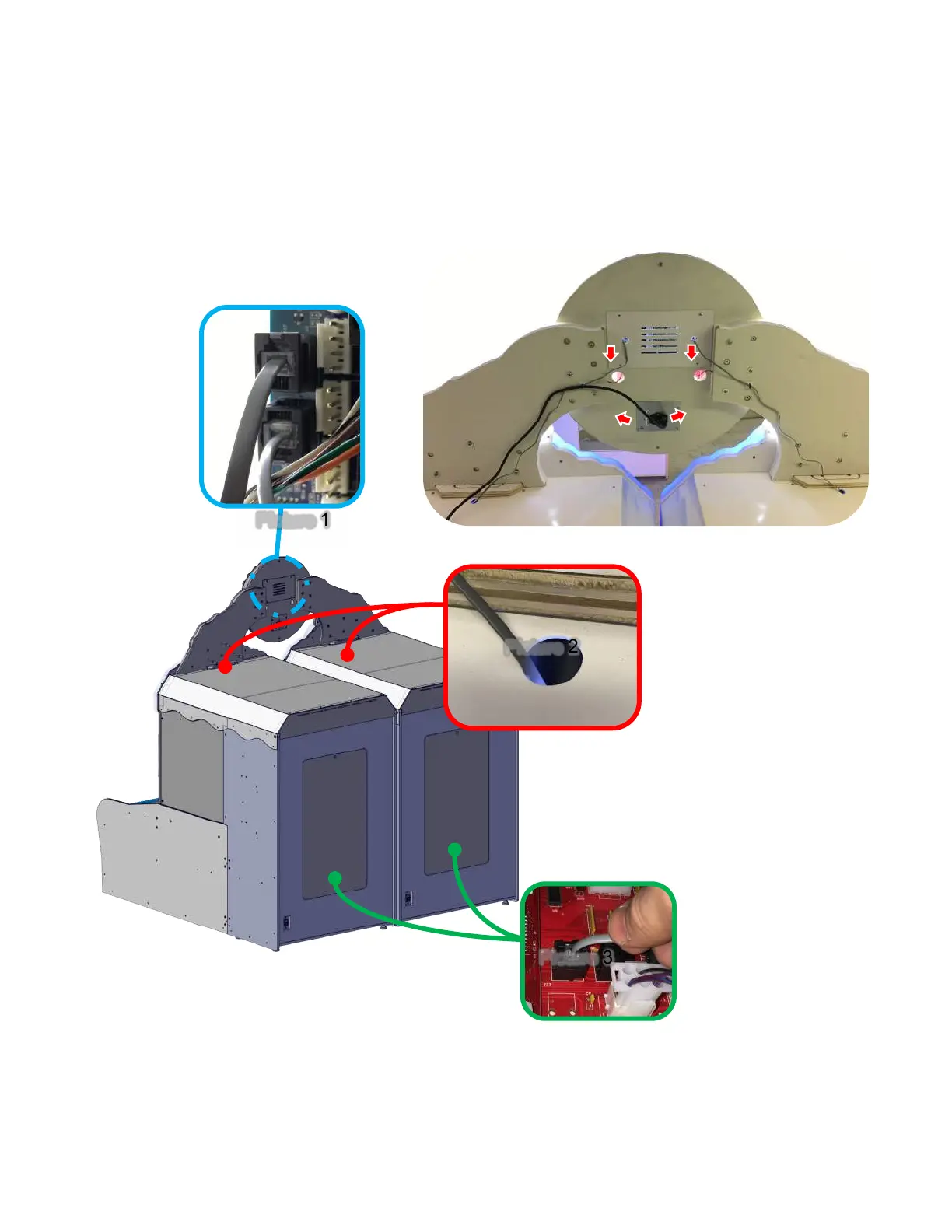

Remove the marquee back cover by removing the four screws shown with the arrows. Insert both
phone style cables through the back door and plug into the marquee board (picture 1). Then take
the other end and insert it through the roof (picture 2). Secure the cable down the same side as the
cheat sensor wiring at the front, on the right side (from the front of the cabinet).
Then plug the phone style cable into the main board (picture 3).
Picture 1
Picture 2
Picture 3
Step 5:
You must change the game ID to different values. Open the front access door on each game and
press the “PROG” button. Press the “SEL” button until your score shows 19. Then press “UP” but-
ton if the two games are not different values. One should be set to “1” and the other to “2”. It is also
recommended to set option 8 to the same (Bonus Tickets).
