15
IA2010
WN201

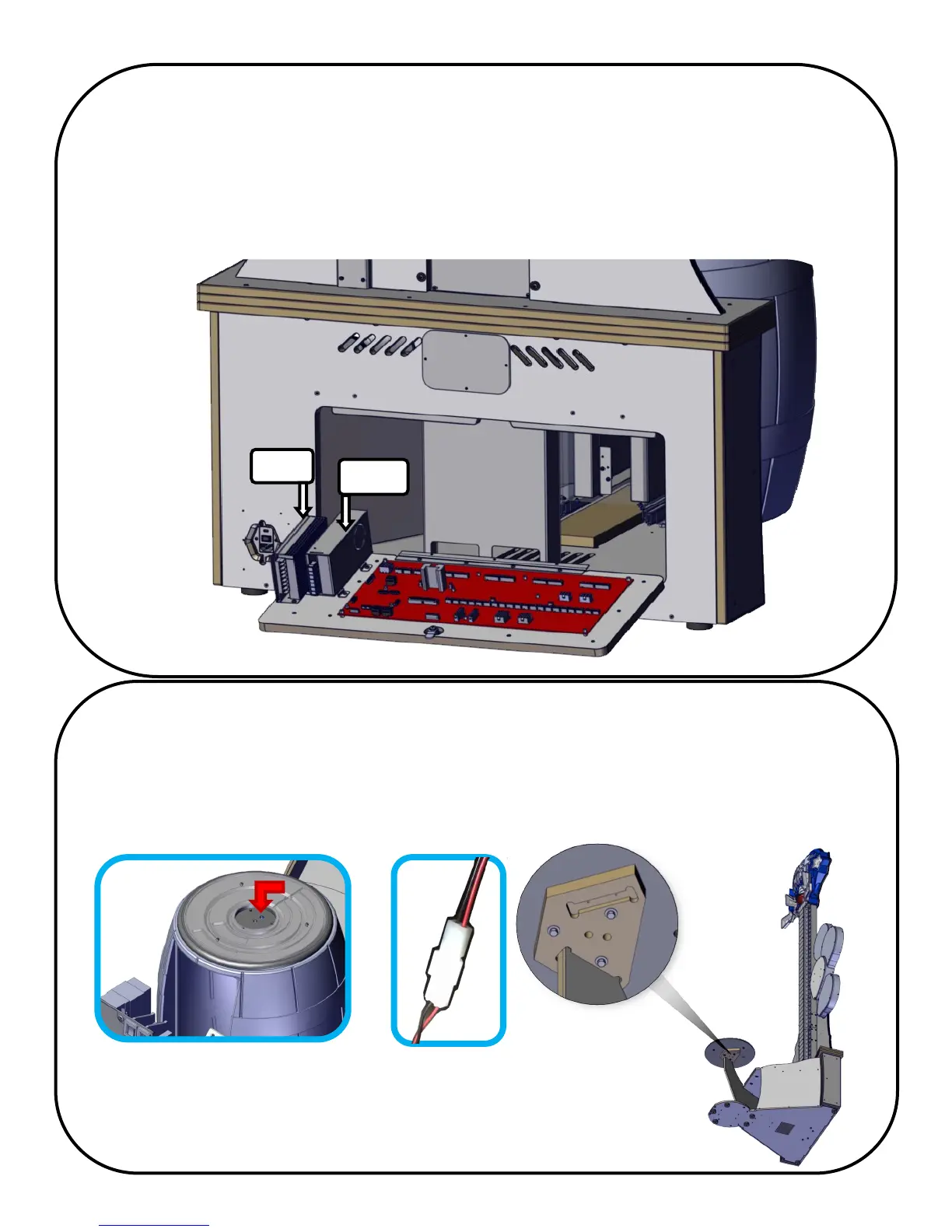

GAME POWER SUPPLIES
There are two power supplies located at the back of the game. The IA2010 power supply provides the
+12 DC volts to the game board, lights, and outer Fun lights. The WN2010 power supply provides the +5
DC voltage for the game logic and center LEDs.
WN1052X Piezo Sensor Assembly Replacement
Open the boom drawer and from underneath the barrel’s top remove the three bolts labeled as A,B, and C (1). Unplug
the harness and li the assembly out. When replacing, use the upper hole to feed the wire harness through.
C
A
B
1
2
3
