Step 10:

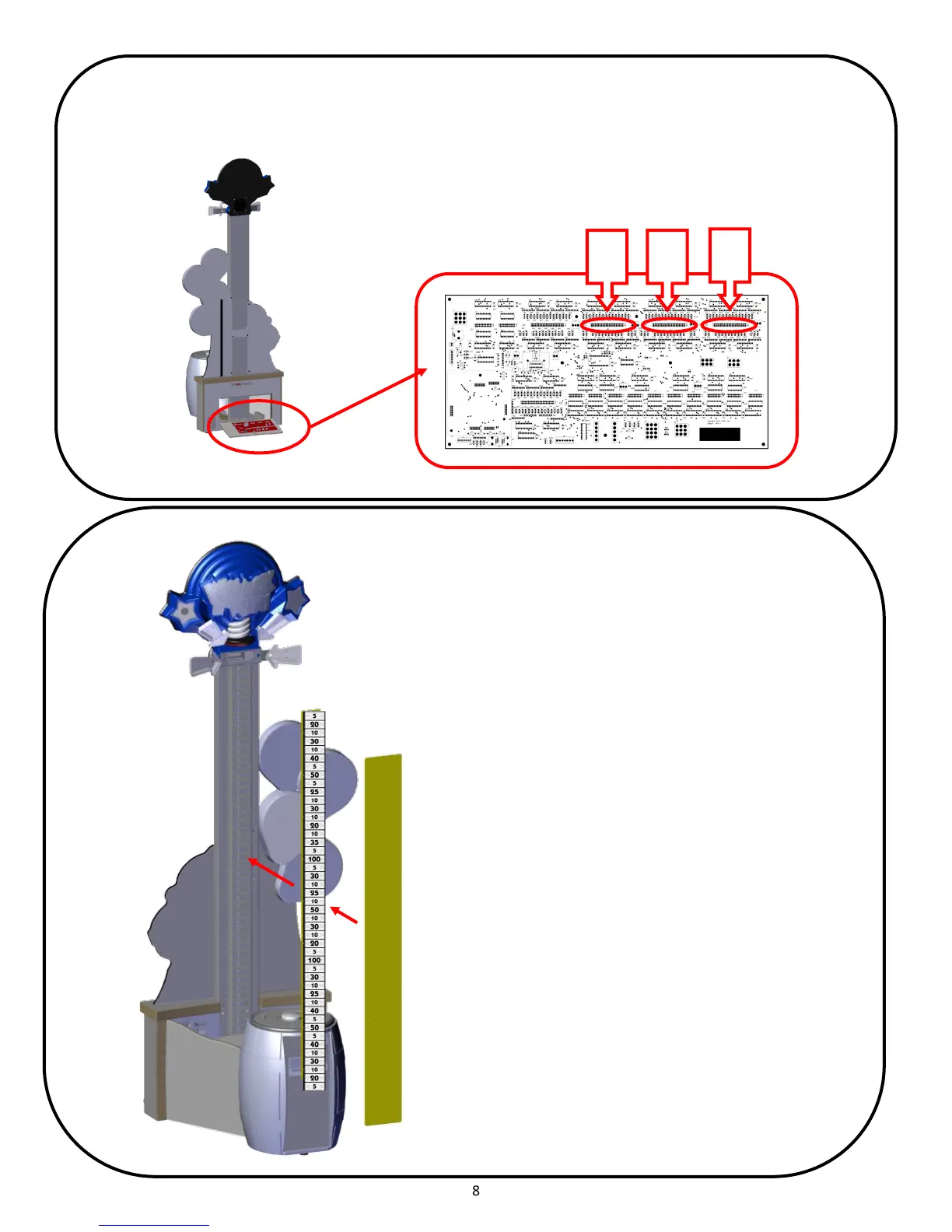

Connect the light housing harnesses to J23, J24, and J25. The harnesses are labeled.
J23
J24 J25
Final:
Align the Playeld score graphic and Clear protecve shield together
and aach using 18 Phillip screws. You will need to remove the
protecve lm from the plasc before you install.
Start at the top and connue down in pairs. Do not ghten any screws
unl all of the screws have been installed.
6663 6/32 x 5/8 (18) Silver Phillips
To Next Page
