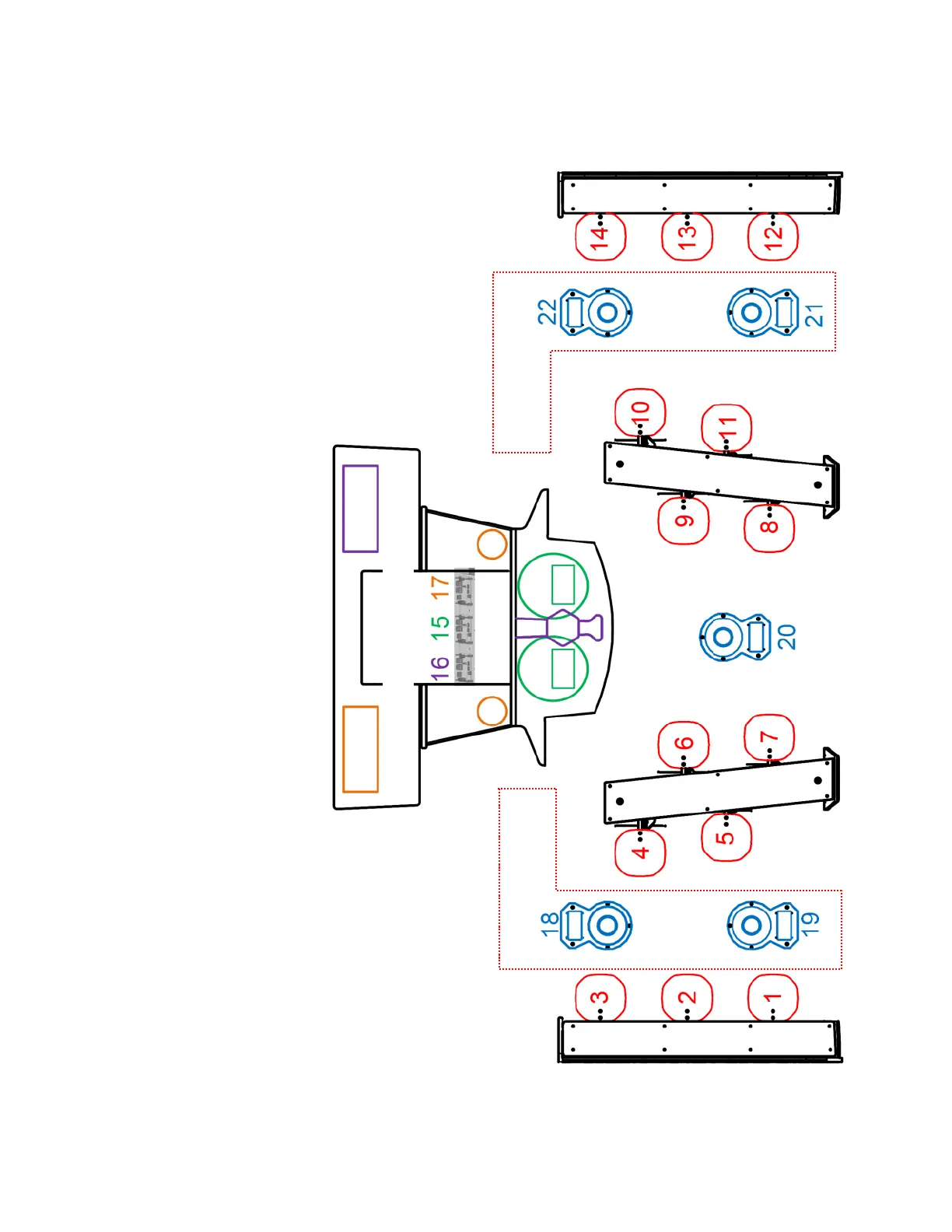

DB2033X Target PCB ID numbers
Boards 1
- 14 are Swinging Targets.
Board 15 is Bonus holes and displays.
Board 16 is Block Arm and Player 2 score display.
Board 17 is Player 1 display and strobe lights.
Boards 18
- 22 are bonus button assemblies.
LEFT TOWER
RIGHT TOWER
LEFT MIDDLE TOWER
RIGHT MIDDLE TOWER
CENTER BUTTON
WALL
LEFT BUTTON WALL
RIGHT BUTTON WALL
JUMBOTRON BOARDS
